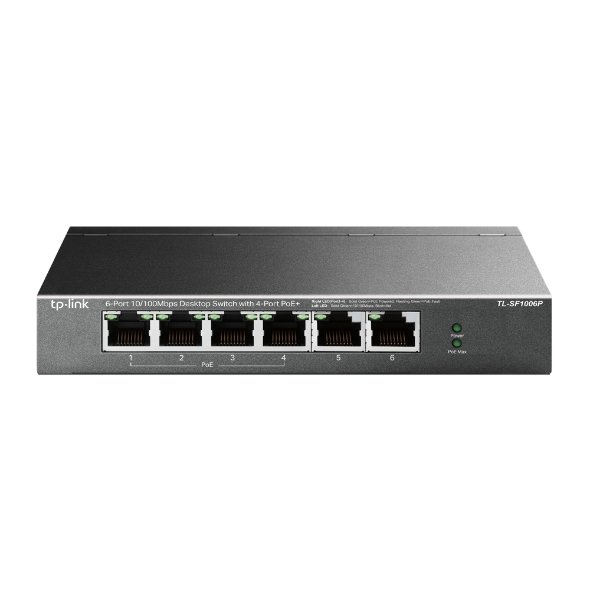

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+ - Image 2
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+ - Image 3

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+

Original price was: 15,900 د.ك.Current price is: 12,900 د.ك.

  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports*
  • Plug and play with no configuration required
SKU: TL-SF1006P Categories: , Brand:

Description

Professional High-Power Switch with 4 PoE+ Ports

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type

HARDWARE FEATURES
Interface• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate0.8928 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.2 Gbps
Dimensions ( W x D x H )6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption• 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation• 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
CertificationFCC, CE, RoHS
Package Contents• TL-SF1006P • Power Adapter • Installation Guide
Environment• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
