Description

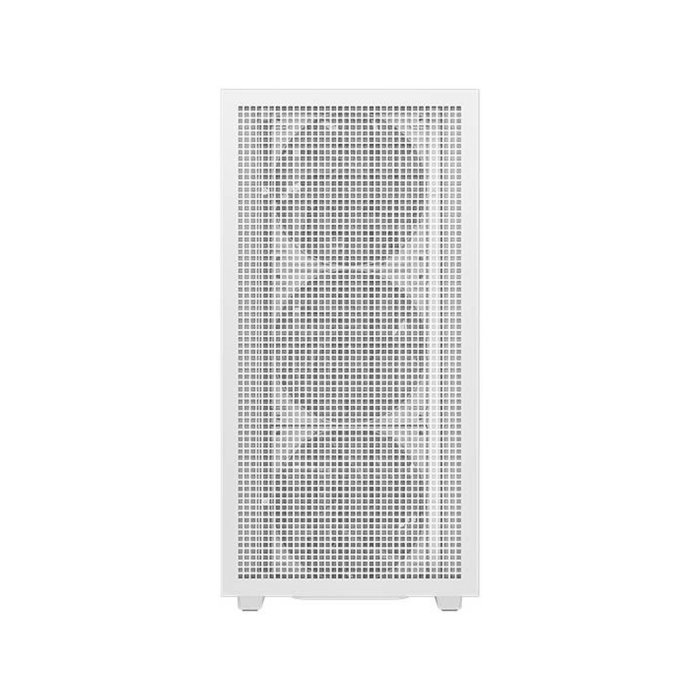

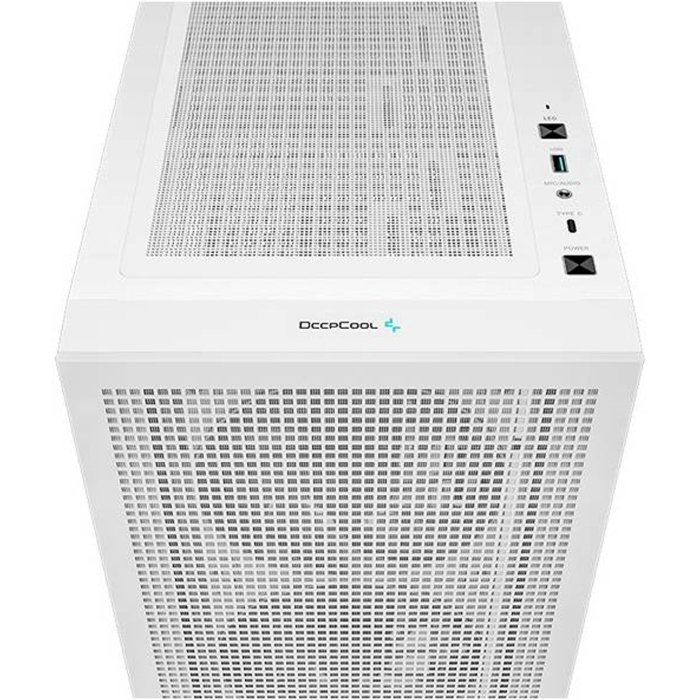

DeepCool CH560 Digital ATX Mid Tower Tempered Glass Side Panel Case – White
R-CH560-WHAPE4D-G-1
Motherboard Support
Mini-ITX / Micro-ATX / ATX / E-ATX
Pre-Installed Fans
Front: 3×140mm ARGBRear: 1×120mm ARGB
Fans Support
Front: 3×120 / 3×140mmTop: 3×120 / 2×140mmRear: 1×120 / 1×140mm (Only supports up to 120mm fan at the rear when using a 360mm radiator on top.)PSU Shrouded: 2×120mm
Radiator Support
Front: 120/140/240/280/360mmTop: 120/140/240/280/360mmRear: 120/140mm
SSD/HDD Support
3.5″ Drive Bays 2, 2.5″ Drive Bays 2+1
Expansion Slots
USB3.0×1?Audio×1?TYPE-C×1
CPU Cooler Limitation
VGA Limitation
PSU Limitation
ATX PS2 ?maximum length: 170mm?
Tempered Glass
1x Temperd Glass Panel
ABS+SPCC+Tempered Glass
Product Size ( Dimension )
458×230×471mm(L×W×H)
1 Year ( As per Manufacturer Policy )
| Model No | DeepCool CH560 Digital ATX Mid Tower Tempered Glass Side Panel Case – White |
| Part No | R-CH560-WHAPE4D-G-1 |
| Color | White |
| Case Size | Mid Tower |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Pre-Installed Fans | Front: 3×140mm ARGBRear: 1×120mm ARGB |
| Fans Support | Front: 3×120 / 3×140mmTop: 3×120 / 2×140mmRear: 1×120 / 1×140mm (Only supports up to 120mm fan at the rear when using a 360mm radiator on top.)PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mmTop: 120/140/240/280/360mmRear: 120/140mm |
| SSD/HDD Support | 3.5″ Drive Bays 2, 2.5″ Drive Bays 2+1 |
| Expansion Slots | 7 Slots |
| I/O Ports | USB3.0×1?Audio×1?TYPE-C×1 |
| CPU Cooler Limitation | 175mm |
| VGA Limitation | 380mm |
| PSU Limitation | ATX PS2 ?maximum length: 170mm? |
| Tempered Glass | 1x Temperd Glass Panel |
| Material | ABS+SPCC+Tempered Glass |
| Product Size ( Dimension ) | 458×230×471mm(L×W×H) |
| Weight | 7.7Kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
