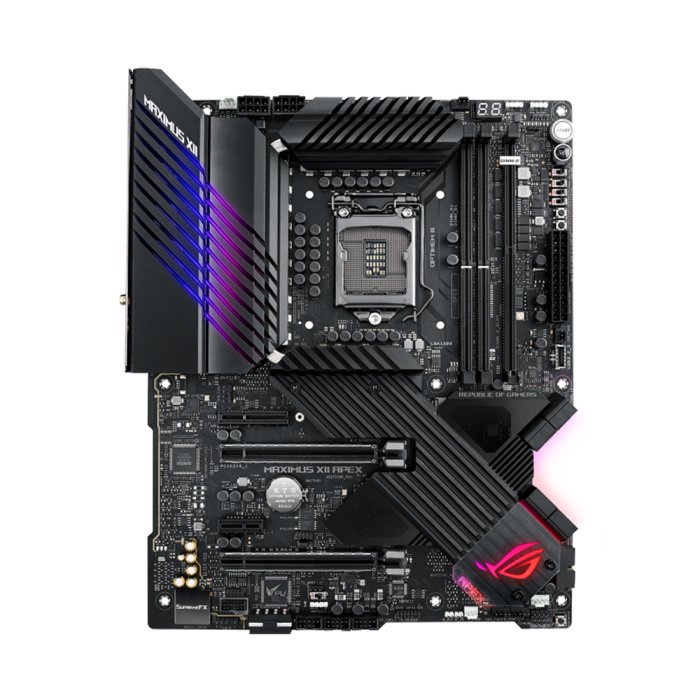

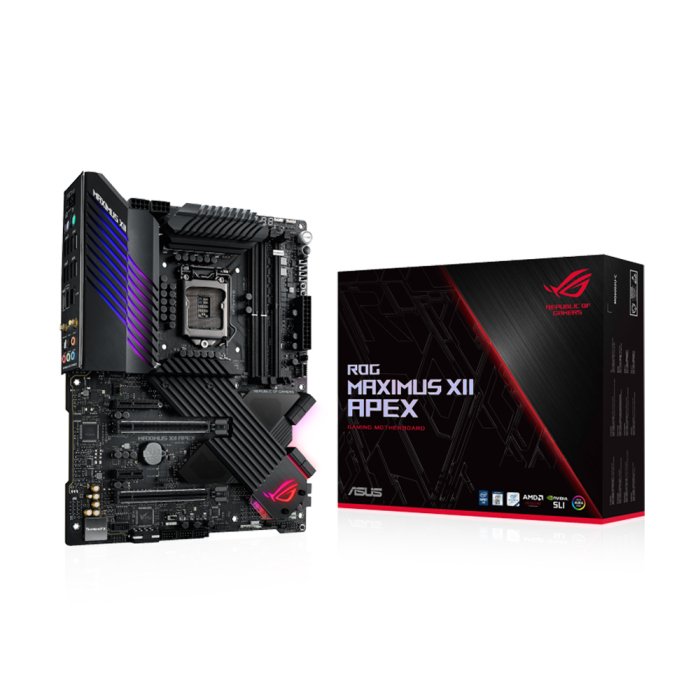

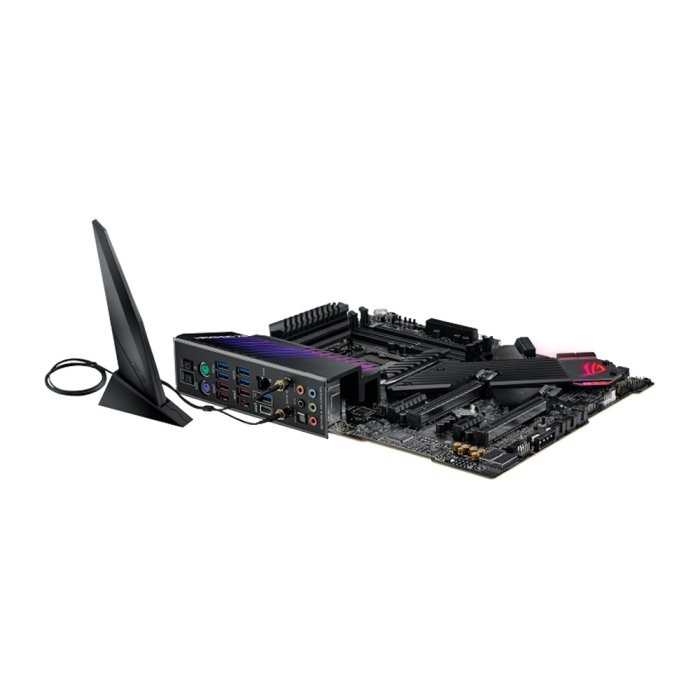

ROG MAXIMUS XII APEX (WI-FI)
ROG Maximus XII Apex is the premiere overclocking platform for extreme OC enthusiasts looking to unlock the full potential of the latest generation Intel Core processors. Its optimized layout, enhanced power delivery and control, and striking design with a myriad of customization options will appeal to overclockers, gamers, and PC builders alike.
Up to 5.3 GHz clock speed with Intel® Thermal Velocity Boost
Intel® Turbo Boost Max Technology 3.0
Memory Support with DDR4-2933
Up to 10 cores and 20 threads
Intel® Hyper-Threading Technology from the Intel® Core™ i9 to the Intel® Core™ i3 desktop processor
New 2.5 G Ethernet
New Wi-Fi 6 (Gig+)
- Up to 5.3 GHz clock speed with Intel® Thermal Velocity Boost
- Intel® Turbo Boost Max Technology 3.0
- Memory Support with DDR4-2933
- Up to 10 cores and 20 threads
- Intel® Hyper-Threading Technology from the Intel® Core™ i9 to the Intel® Core™ i3 desktop processor
- New 2.5 G Ethernet
- New Wi-Fi 6 (Gig+)
PERFORMANCE
Push the performance envelope with hardware-level overclocking controls, intelligent power solution and enhanced memory support.
- Condensation DetectionSpecialized circuitry allows Maximus XII Apex to detect when condensation occurs on the back of the board. Divided into three distinct sections — CPU, DRAM and PCIe — the feature provides a useful warning when an area may be at risk of short-circuiting.
- Overclocker’s ToolkitAn Overclocker’s Tookit with hardware-level controls will aid your overclocking experience. They’re quick and easy time-savers designed to help you break more records.
- High Quality ComponentsMaximus XII Apex utilizes an intelligent VRM design fed by dual eight-pin auxiliary power connectors. Sixteen teamed power stages help eke out the last few MHz at the limits of the silicon.
- Dual 8-pin ProCool II power connectorsTwo ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
- 70 A power stageThe VRM has 16 power stages, each rated to handle 70 amps.
- MicroFine alloy chokesEach Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
- 10K Japanese-made black metallic capacitorsInput and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
- ASUS OptiMem IIIBoasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. Stack Maximus XII Apex with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.
COOLING
A comprehensive cooling solution features carefully-designed heatsinks with the perfect balance of surface mass and air flow. With the addition of fan headers, the onboard cooling of Maximus XII Apex has more than enough capacity for specialization, maintaining system stability under any condition.
- VRM and I/O heatsinkA high mass, finned heatsink is connected to the I/O cover via a heat pipe, providing an expansive surface area for efficient heat dissipation.
- Large‑diameter heatpipeThe U-shaped design provides rapid and even heat transfer from the VRM to the extended VRM heatsink.
- Aluminum heatsink coverThe heatsink cover is crafted from pure aluminum to efficiently cool the onboard M.2 drive.
- DIMM.2 heatsinksThe ROG DIMM.2 module now passively cools M.2 drives with metal heatsinks that also keep your build looking clean.
- High-conductivity thermal padThe high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
- Extended VRM heatsinkThe extended heatsink increases thermal mass to deal with the additional heat generated by high power consumption.
- Chipset heatsinkA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
- ROG Water-Cooling ZoneDual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
- Grow Your Gaming WorldGear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
- Addressable Gen 2 RGB headerThe addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Connectivity
Maximus XII Apex is well equipped to deliver supersmooth wireless connectivity and compatibility with multiple input sources and PCIe extensions, all of which are a must have for any setups.
- Three PCIe 3.0 M.2ROG Maximus XII Apex features three M.2 slots wired directly to the Z490 PCH. Two slots support both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Additional Intel® Optane™ memory recognizes, remembers, and speeds up access to most frequently used files, applications, and games for faster, more responsive performance.
- ROG DIMM.2The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. Add a metal heatsink to handle the heat generated at maximum performance, while at the same time giving your build a bit of style.*DIMM.2 accommodates M.2 drives up to 22110 (110mm) in length
- WiFi 6 (AX201)Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.
- Intel 2.5G EthernetOnboard Intel 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
- SupremeFXImmerse yourself in sound with SupremeFX audio technology. This integrated audio solution utilizes the S1220A codec to provide a flat frequency response for a neutral, detailed sound signature.
- S1220A codec10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs
