Description

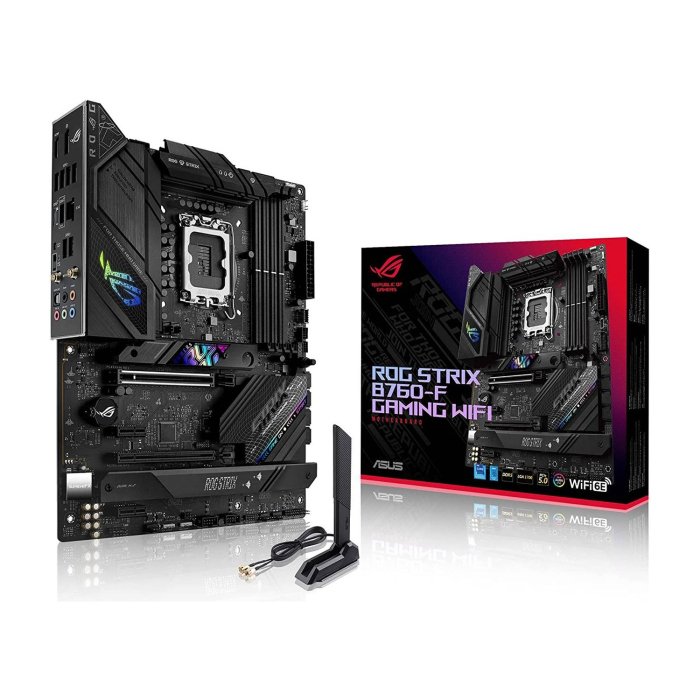

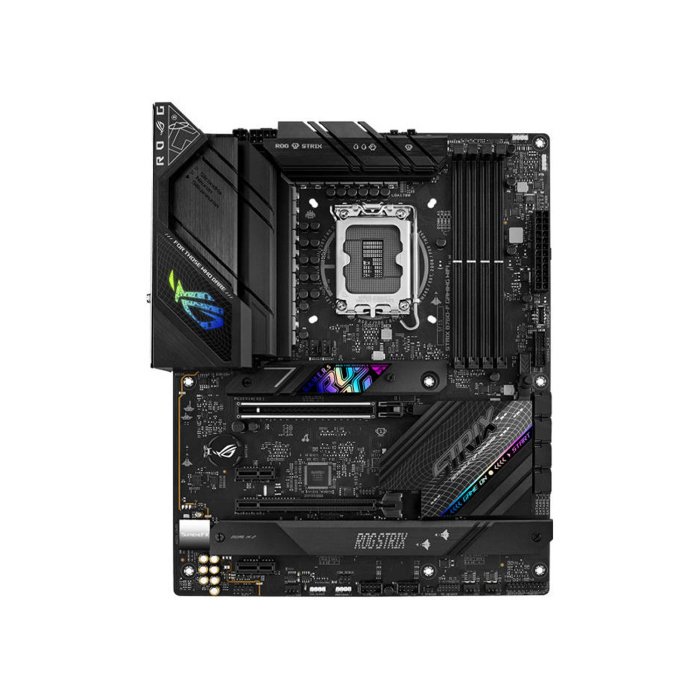

Asus Intel Rog Strix B760-F WIFI DDR5 Gaming MotherBoard
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.
1 x Intel® 2.5Gb EthernetASUS LANGuard
4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC),5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Storage Compatibility
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Processors (14th & 13th & 12th Gen)*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
1 x DisplayPort**1 x HDMI® port*** * Graphics specifications may vary between CPU types.**Supports max. 8K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.
Rear USB (Total 8 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)6 x USB 3.2 Gen 1 ports (6 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Intel® Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 5.0×16 slot (supports x16 mode)**Intel® B760 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode)***2 x PCIe 3.0 x1 slots
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playback”Audio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors- Audio cover*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

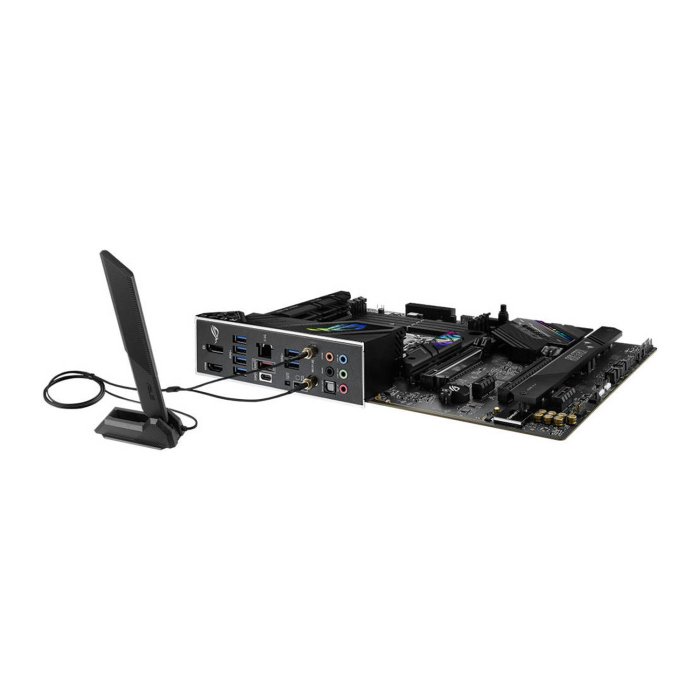

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)6 x USB 3.2 Gen 1 ports (6 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks *1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 xThunderbolt™ (USB4®) header
Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool – Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headers
Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 Q-Latch package2 x M.2 Rubber Package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardDocumentation1 x User guide
Windows® 11, Windows® 10 64-bit
256 Mb Flash ROM, UEFI AMI BIOS
1 Year ( As per Manufacturer Policy )
