Description

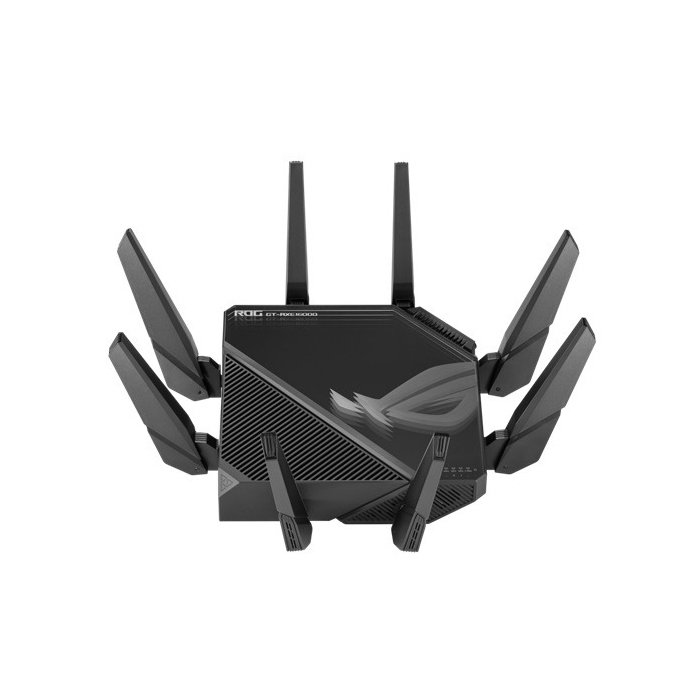

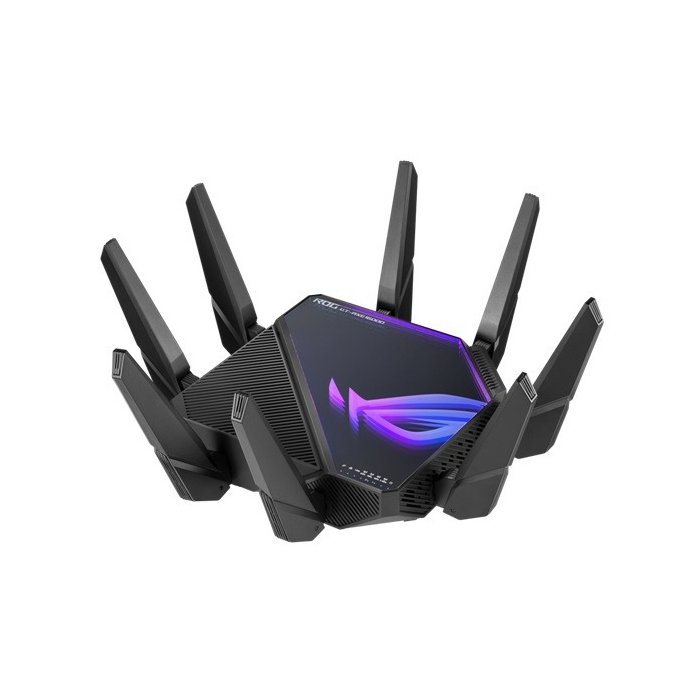

Asus ROG Rapture GT-AXE16000 Quad-Band WiFi 6E (802.11ax) Gaming Router
WiFi 6 (802.11ax)WiFi 6E (802.11ax)Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
AXE16000 ultimate AX/AXE performance
2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps6GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
External antenna x 8 (non-detachable)Internal antenna x 4
2.4GHz 4x45GHz-1 4x45GHz-2 4x46GHz 4×4
2.0GHz quad-core processor
256MB NAND flash and 2GB DDR4 RAM
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz

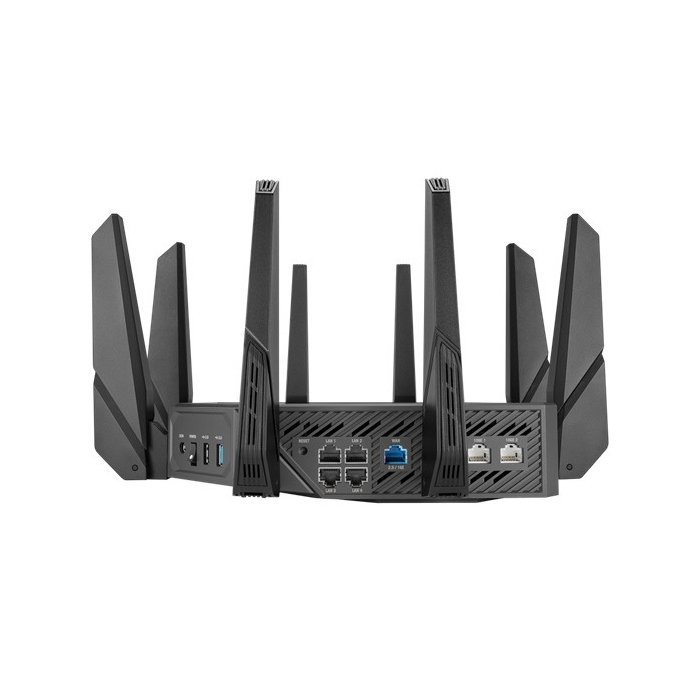

1 x 2.5 Gigabit WAN Port2 x 10 Gigabit WAN/LAN Ports4 x Gigabit LAN Ports1 x USB 3.2 Gen 1 Port1 x USB 2.0 Port
WPS Button, LED Button, Reset Button, Power Switch
Power x 12.4G x 15GHz-1 x 15GHz-2 x 16G x 110GE Port x 1LAN x 1WAN x 1
AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 3.42 A current ï¼› 19.5 V with max. 3.33 A current
AiMeshPrimary AiMesh routerAiMesh node
Game Boost/accelerationGame RadarWTFastROG_FirstOpenNAT (Game Profile)
AiProtection ProRouter Security AssessmentMalicious site blockingTwo-Way IPSInfected Device Prevention and Blocking
Parental ControlParental Control Customized Internet scheduleMaximum Parental Control profile : 64Maximum Parental Control content filter rule : 64
Adaptive QoSBandwidth MonitorBandwidth limiterMaximum Bandwidth limiter rule : 32Traditional QoSTraffic MonitorReal-time traffic monitorWired Traffic MonitorWireless Traffic MonitorTraffic AnalyzerTraffic analysis period : Daily, Weekly, MonthlyWebsite history
IPv6MU-MIMOWiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWEUTF-8 SSIDGuest NetworkMaximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3Guest Network Connection time limitGuest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-PersonalWPSWi-Fi MAC address filterMaximum MAC filters : 64Wireless schedulerAirtime fairnessRADIUS ClientUniversal beamforming
Explicit beamformingInternet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TPDual WANWAN Aggregation3G/4G LTE dongleAndroid tetheringPort forwardingMaximum port forwarding rule : 64Port triggeringMaximum port triggering rule : 32DMZDDNSNAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relayLet’s EncryptSafe browsingDNS-over-TLS
DHCP ServerIGMP snoopingIPTVLAN Link AggregationManually assign IP addressMaximum manually assign IP address rule : 128
VPN Client L2TPVPN Client OVPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server OVPNVPN Server PPTPVPN Server WireGuardVPN Fusion
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4Safely Remove diskAiCloudDownload masterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder privileges
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridgeOperating system : ASUSWRTFree OS upgradeFirewallMaximum Firewall keyword filter : 64Maximum Firewall network service filter : 32Maximum Firewall URL filter : 64Wake on LAN (WOL)SSHConfiguration backup and restoreDiagnosis toolsFeedback systemSystem logNew Device Connect NotificationLogin CaptchaConnection DiagnosisSecurity ScanAuto Firmware Update
World’s first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 MbpsNew 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device optionsDual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports.2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6.Triple-level game acceleration – Accelerate game traffic every step of the way — from device to game server
GT-AXE16000 WiFi Gaming RouterRJ-45 CablePower AdapterQuick Start GuideWarranty Card
1 Year ( As per Manufacturer Policy )
