Description

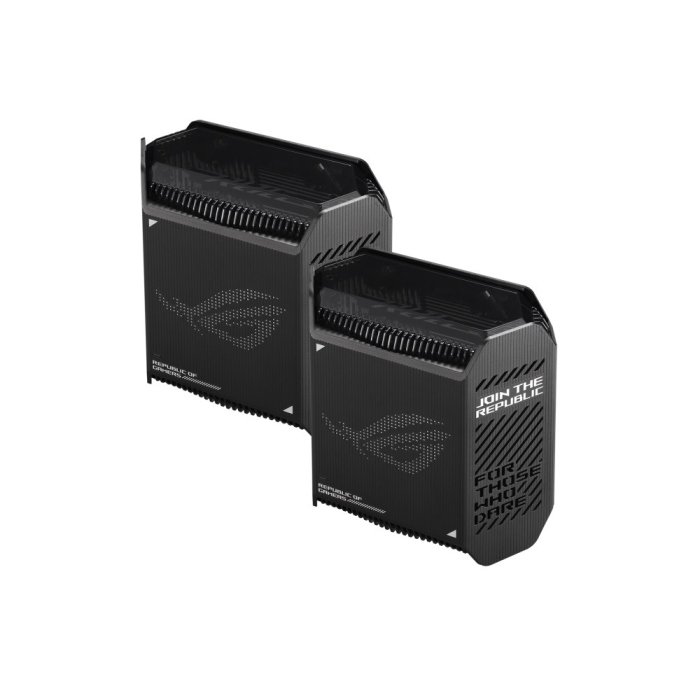

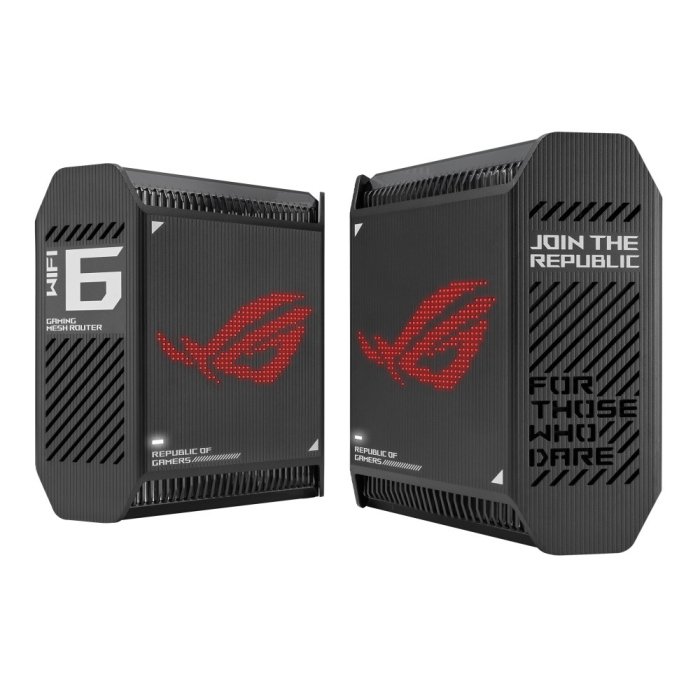

Asus ROG Rapture GT6 WiFi 6 Tri-Band Gaming Mesh System ( Pack of 2) – Black
90IG07F0-MU9A20
Network Standard
WiFi 6 (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AX10000 ultimate AX performance
2.4GHz AX: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Internal antenna x 9
Transmit/Receive
1.7GHz tri-core processor
256MB Flash
512MB DDR4 RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
Operating Mode
Wireless router mode
Access point mode
1 x 2.5 Gigabit WAN Port
3 x Gigabit LAN Ports
1 x USB 3.2 Gen 1×1 Port
Reset Button
Power Switch
LED Indicator
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
• Primary AiMesh Router
• AiMesh Node
Game Boost / Acceleration
OpenNAT (Game Profile)
Gaming Port
Parental Control
“Allow you to block access to unwanted websites and apps.”
Parental Control Customized Internet Schedule
Traffic Control
“The Guest Network provides Internet connection for guests but restricts access to your local network.”
Guest Network Connection time limit
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
DHCP Server
IGMP Snooping
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
Let’s Encrypt
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
Download Master
Media Server
Time Machine
Samba Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Package content
ROG Rapture GT6
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
1 Year ( As per Manufacturer Policy )
