Description
Next-Generation Micro-ATX Gaming Motherboard

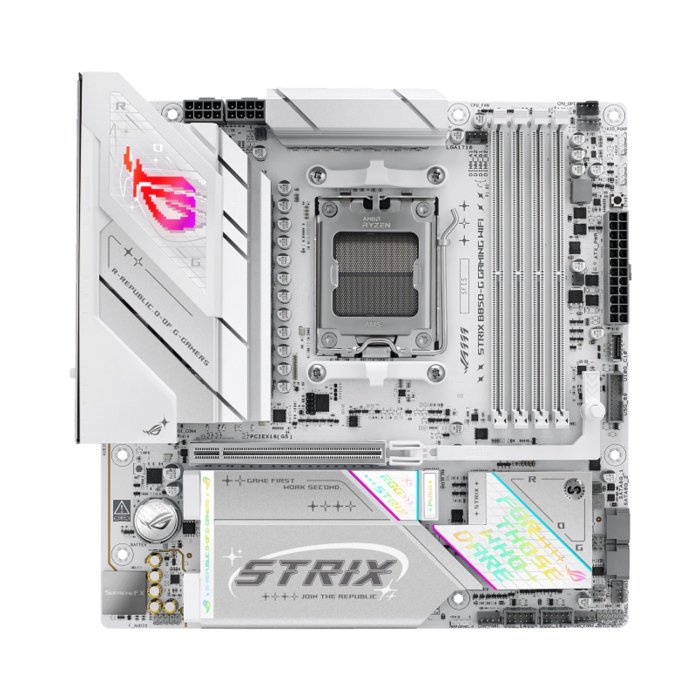

The ASUS ROG Strix B850-G Gaming WiFi 7 is a powerful micro-ATX motherboard designed for gamers and PC enthusiasts who want top-tier performance in a compact form factor. Built on the AMD B850 chipset with the AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, delivering excellent performance for gaming, streaming, and creative workloads. With support for high-speed DDR5 memory, this motherboard ensures faster data access, improved multitasking, and future-ready performance.
Advanced Connectivity and Storage Capabilities
Robust Power Delivery and User-Friendly Design
This motherboard is equipped with Wi-Fi 7 technology for ultra-fast wireless speeds and reduced latency, alongside 2.5Gb Ethernet for stable wired networking. It features a PCIe 5.0 x16 slot for next-generation graphics cards and multiple M.2 slots, including PCIe 5.0 support, allowing blazing-fast NVMe storage performance. High-speed USB-C and USB-A ports provide versatile connectivity for peripherals, external storage, and accessories.
The ROG Strix B850-G Gaming WiFi 7 uses a high-quality power delivery system to ensure stable CPU performance under heavy loads. Large heatsinks and optimized thermal design help maintain efficient cooling during intense gaming sessions. ASUS DIY-friendly features such as M.2 Q-Latch, PCIe Q-Release, BIOS FlashBack, and a pre-installed I/O shield make system building and upgrades easier. Premium onboard audio and customizable RGB lighting support complete the high-end gaming experience.
Key Specifications
Form Factor: Micro-ATX
Chipset: AMD B850
CPU Socket: AM5
Processor Support: AMD Ryzen 7000 / 8000 / 9000 Series
Memory Support: 4 × DDR5 DIMM, Dual Channel, up to 256 GB
Memory Speed: Up to 8000+ MT/s (OC)
Expansion Slot: 1 × PCIe 5.0 x16
Storage: Multiple M.2 slots (including PCIe 5.0), SATA 6 Gb/s ports
Networking: Wi-Fi 7, 2.5Gb Ethernet

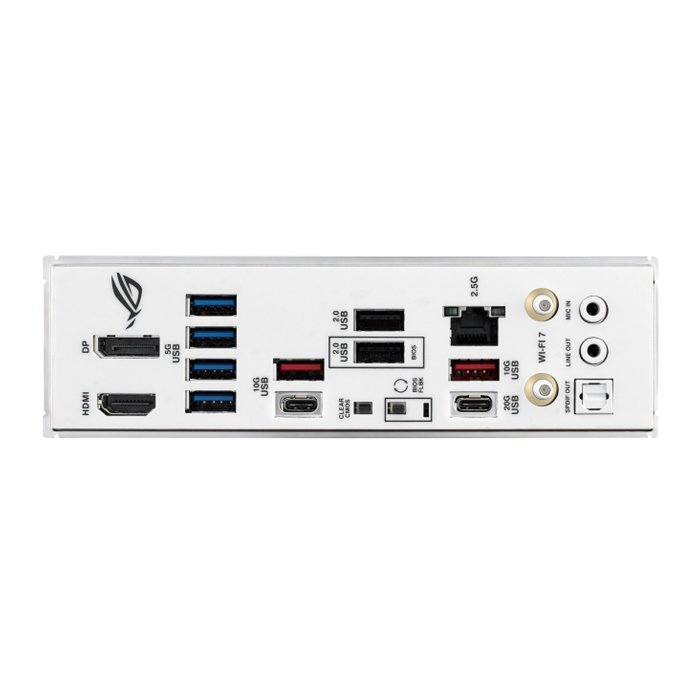

USB Ports: USB-C (up to 20 Gbps), USB-A (10 Gbps / 5 Gbps / 2.0)
Display Outputs: HDMI, DisplayPort
Audio: 7.1-channel HD audio
Special Features: Aura Sync RGB, M.2 Q-Latch, PCIe Q-Release, BIOS FlashBack, pre-mounted I/O shield
Operating System Support: Windows 11
- Form Factor: Micro-ATX
- Chipset: AMD B850
- CPU Socket: AM5
- Processor Support: AMD Ryzen 7000 / 8000 / 9000 Series
- Memory Support: 4 × DDR5 DIMM, Dual Channel, up to 256 GB
- Memory Speed: Up to 8000+ MT/s (OC)
- Expansion Slot: 1 × PCIe 5.0 x16
- Storage: Multiple M.2 slots (including PCIe 5.0), SATA 6 Gb/s ports
- Networking: Wi-Fi 7, 2.5Gb Ethernet
- USB Ports: USB-C (up to 20 Gbps), USB-A (10 Gbps / 5 Gbps / 2.0)
- Display Outputs: HDMI, DisplayPort
- Audio: 7.1-channel HD audio
- Special Features: Aura Sync RGB, M.2 Q-Latch, PCIe Q-Release, BIOS FlashBack, pre-mounted I/O shield
- Operating System Support: Windows 11
