Description

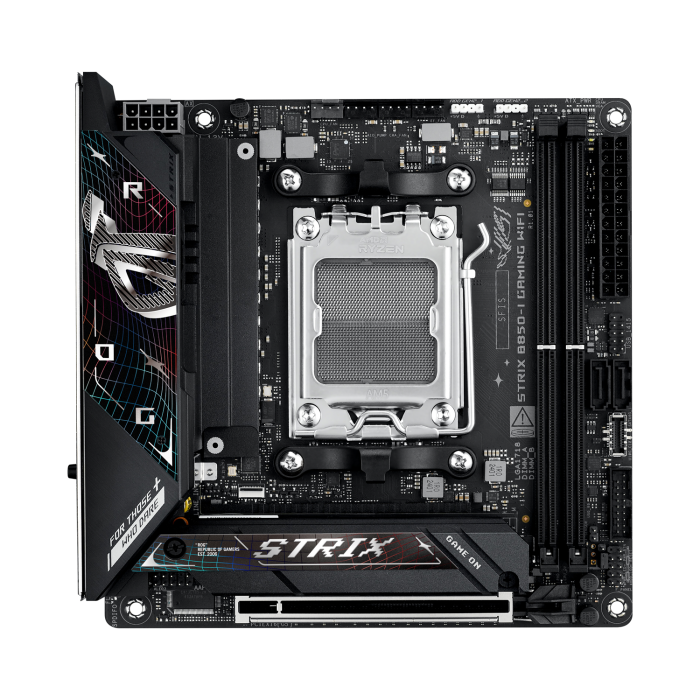

ROG STRIX B850-I GAMING WIFI
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Wi-Fi 7*2×2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
1 x Intel® 2.5Gb EthernetASUS LANGuard
2 x DIMM slots, max. 128GB, DDR5Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series ProcessorsECC and Non-ECC, Un-buffered DIMMDual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)
1 x HDMI™ port*** 1 x USB 10Gbps ports support USB Type-C® display outputs***** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.*** Supports 4K@60Hz as specified in HDMI 2.1.****Supports max. 4K@60Hz as specified in DisplayPort 1.4a***** VGA resolution support depends on processors’ or graphic cards’ resolution.
Storage Compatibility
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s portsAMD Ryzen™ 7000 & 9000 Series Desktop ProcessorsM.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode)M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode)M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** Specifications vary by CPU types.

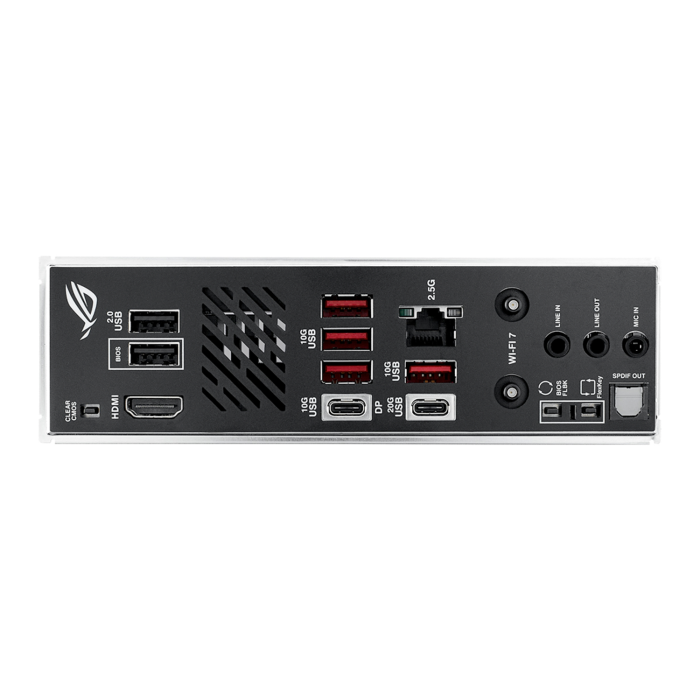

1 x USB 20Gbps port(s)5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)2 x USB 2.0 port(s) (2 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port3 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button1 x FlexKey button
USB Ports Front (Support )
Rear USB (Total 8 ports)1 x USB 20Gbps port(s) (1 x USB Type-C®)5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)2 x USB 2.0 port(s) (2 x Type-A)Front USB (Total 5 ports)1 x USB 10Gbps1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 portsUSB Type-C® power delivery output: max. 5V/3A
AMD Ryzen™ 9000 & 7000 Series Desktop Processors1 x PCIe 5.0 x16 slot with Q-Release SlimAMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot with Q-Rlease Slim – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Internal I/O Connectors
Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin Extra Flow Fan header1 x 4-pin AIO Pump header1 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)2 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header
Extreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers

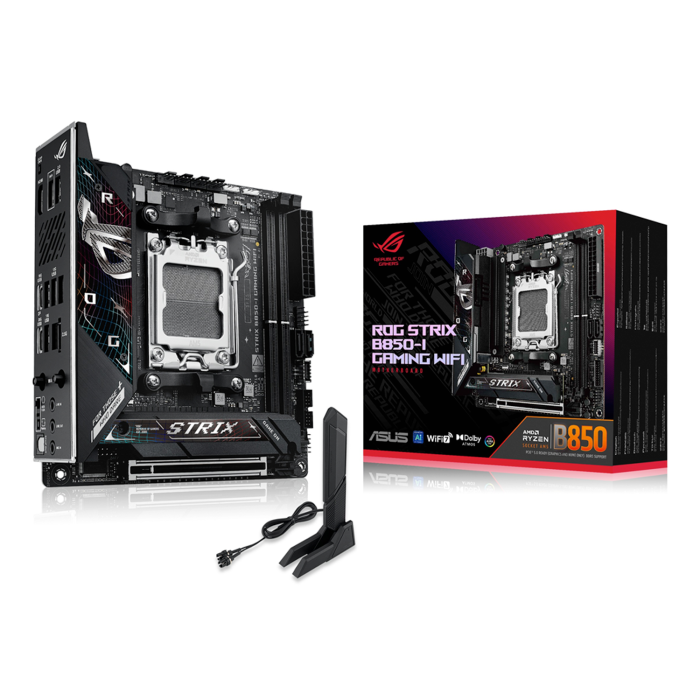

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 backplate Q-Latch package(s)1 x M.2 Q-Slide package1 x ROG key chain1 x ROG Strix stickers1 x M.2 backplate rubber package(s)Documentation1 x Quick start guide
Product Size ( Dimension )
6.7 inch x 6.7 inch (17 cm x 17 cm)
1 Year ( As per Manufacturer Policy )
