Description

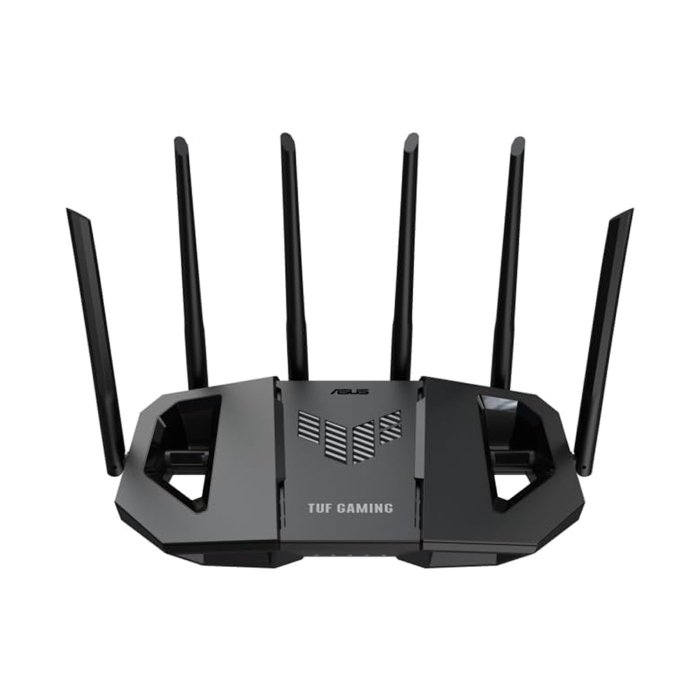

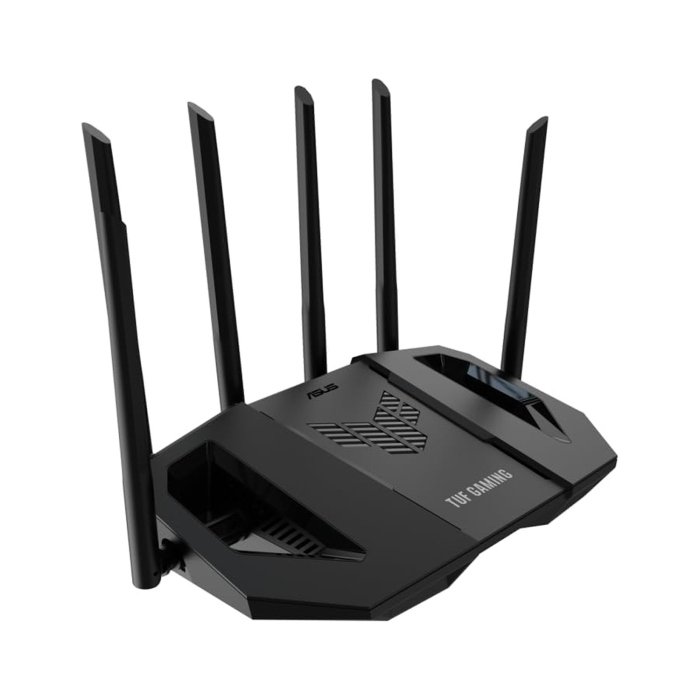

Asus Tuf Gaming Wifi 7 BE6500 Extendable Router
IPv6IPv4WiFi 7 (802.11be)WiFi 6 (802.11ax)WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a
BE6500 ultimate BE performance : 688+5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 MbpsWiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
External fixed antenna x 6
1.5GHz Quad-core Processor
256 MB Flash and 1 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160 MHz bandwidth
Repeater ModeMedia Bridge ModeAccess Point ModeAiMesh Node ModeWireless Router Mode

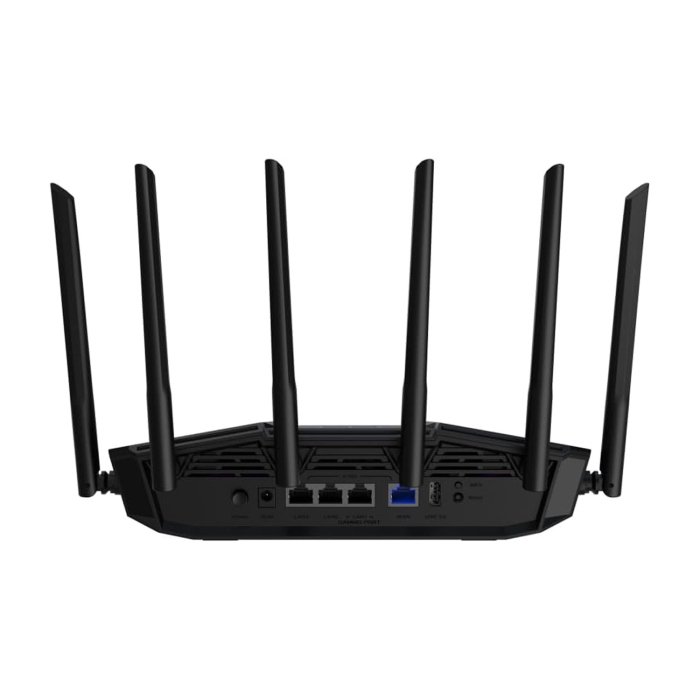

1 x 2.5GbE for WAN3 x 2.5GbE for LAN1 x USB 3.2 Gen1
WPS Button, Reset Button, Power Button
WAN(Internet) x1LAN x15GHz x 12.4GHz x1Power x1
AC Input : 110V~240V(50~60Hz)DC Output : 12 V with max. 2.5 A current
• AiMesh Node• Primary AiMesh RouterAiMesh
Gaming PortOpenNAT (Game Profile)Gear AcceleratorGame Boost / Acceleration
Web & Apps FiltersTime SchedulingSafe BrowsingCustomized Internet Schedule”Allow you to block access to unwanted websites and apps.”• Maximum Parental Control Profile : 64• Maximum Parental Control Content Cilter Rule : 64
Support Guest NetworkGuest Network Connection Time Limit”The Guest Network provides Internet connection for guests but restricts access to your local network.”• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
AiProtection Pro• Infected Device Prevention and Blocking• Two-Way IPS• Malicious Site Blocking• Router Security Assessment
VPNDNS-over-TLSSecurity ScanSSHFirewallLet’s EncryptWPSAiProtectionWPA/WPA2/WPA3 PersonalWPA/WPA2/WPA3 EnterpriseOpen System & OWE• Maximum Firewall Keyword Filter : 64• Maximum Firewall Network Service Filter : 32• Maximum Firewall URL Filter : 64
MU-MIMORADIUS ClientUniversal BeamformingAirtime FairnessWireless SchedulerWiFi MAC Address FilterUTF-8 SSID• Maximum MAC Filters : 64
• PPPoE Relay• IPSec• SIP Pass-Through• H.323 Pass-Through• Static IP• RTSP Pass-Through• Automatic IP• IPSec Pass-Through• L2TP• L2TP Pass-Through• PPTP• PPTP Pass-Through• PPPoEInternet Connection Type :DDNSDMZPort triggeringPort forwarding3G / 4G LTE dongleDual WAN• Maximum Port Forwarding Rule : 64• Maximum Port Triggering Rule : 32
Manually Assign IP AddressWake on LAN (WOL)IPTVDHCP Server• Maximum Manually Assign IP Address Rule : 64
Support SurfsharkSupport Nord VPNInstant GuardVPN Client WireGuardVPN Server WireGuardVPN FusionVPN Server PPTPVPN Server Open VPNVPN Server IPSecVPN Client PPTPVPN Client Open VPNVPN Client L2TP
• FAT32• ext4• ext3• ext2• vFAT• NTFS• HFS+Samba ServerShared Folder PrivilegesFTP ServerTime MachineMedia ServerAiDiskDownload MasterAiCloudSafely Remove Disk
New Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware UpdateConfiguration Backup and RestoreDiagnosis toolsFeedback SystemSystem Log
TUF-BE6500 dual-band gaming routerRJ-45 cablePower adapterQuick Start GuideWarranty card
1 Year ( As per Manufacturer Policy )
