Description
High-Performance AMD AM5 Foundation

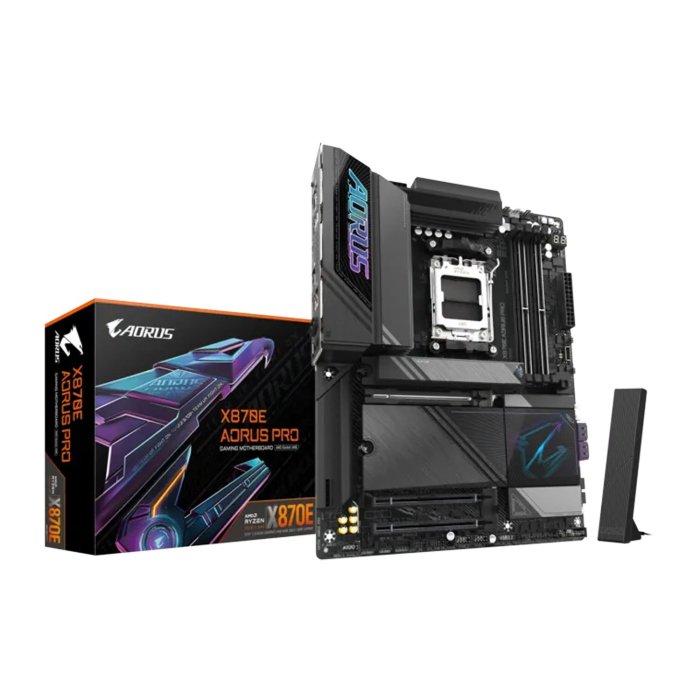

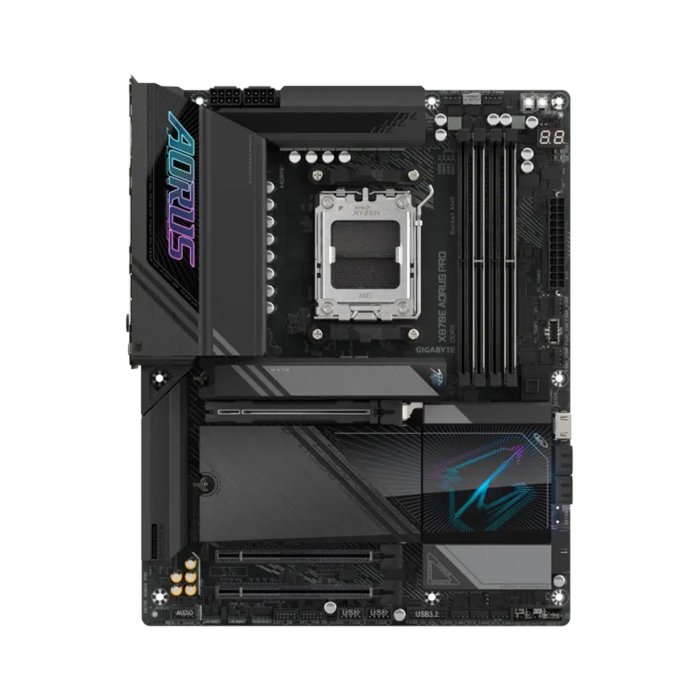

The Gigabyte X870E AORUS PRO is a premium ATX motherboard designed to maximize the potential of AMD Ryzen 9000, 8000, and 7000 series processors. Built on the flagship X870E chipset, it features a sophisticated 16+2+2 Twin Digital VRM design with 80A Smart Power Stages, providing exceptionally stable power delivery for high-end gaming and multi-threaded creative workloads. Its 6-layer server-grade PCB and reinforced construction ensure long-term durability and signal integrity, making it a robust choice for enthusiasts looking to build a future-proof system.
Cutting-Edge Connectivity and Speed
Intuitive DIY-Friendly Design
This motherboard X870E AORUS PRO is equipped with the latest industry standards for data transfer and networking. It features dual USB4 Type-C ports capable of reaching speeds up to 40Gb/s, alongside support for DisplayPort Alt Mode for high-resolution displays. Gamers will benefit from Wi-Fi 7 technology, which utilizes the 320MHz channel for ultra-fast wireless speeds, and a 2.5GbE LAN port for a stable, low-latency wired connection. With three PCIe 5.0 M.2 slots, users can leverage the fastest NVMe storage available to drastically reduce boot times and loading screens.
Gigabyte has streamlined the building process with its EZ-Latch innovations, featuring tool-free mechanisms for installing M.2 SSDs and quick-release buttons for removing large graphics cards. The thermal solution is equally advanced, utilizing VRM Thermal Armor Advanced and dedicated M.2 Thermal Guards to keep high-performance components cool under pressure. For easy troubleshooting and customization, the board includes onboard power and reset buttons, an EZ-Debug zone, and a unique Sensor Panel Link for connecting internal monitoring screens without cluttering the case.
Key Specifications
Socket: AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series)
Chipset: AMD X870E
Memory Support: 4x DDR5 DIMM (Up to 256GB, Supports 8000+ MT/s OC)
Power Design: 16+2+2 Phases Twin Digital VRM (80A Smart Power Stage)
Expansion Slots: 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 4.0 x4, 1x PCIe 3.0 x4
Storage Interface: 3x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
Networking: 2.5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.3/5.4

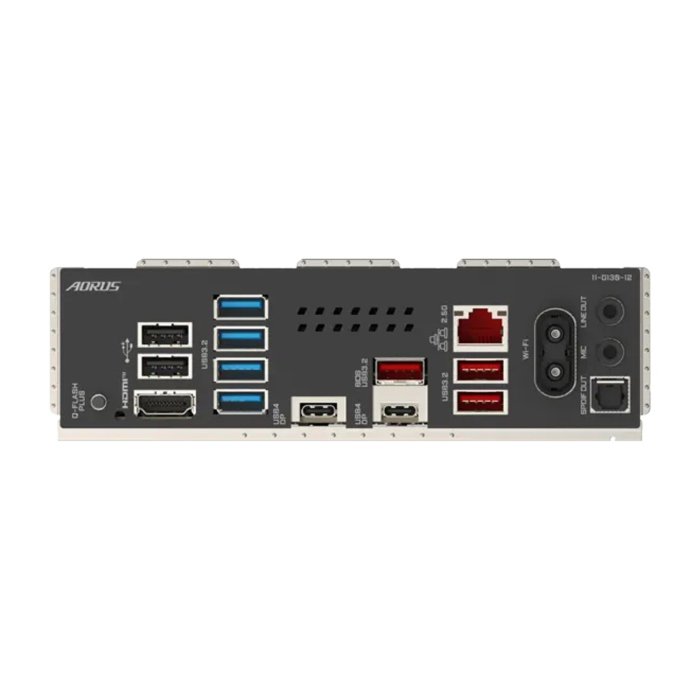

Rear I/O Ports: 2x USB4 (40Gb/s), 3x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 1x HDMI 2.1
Audio: Realtek ALC1220 Codec (7.1 Channel High Definition Audio)
Form Factor: ATX (30.5cm x 24.4cm)
- Socket: AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series)
- Chipset: AMD X870E
- Memory Support: 4x DDR5 DIMM (Up to 256GB, Supports 8000+ MT/s OC)
- Power Design: 16+2+2 Phases Twin Digital VRM (80A Smart Power Stage)
- Expansion Slots: 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 4.0 x4, 1x PCIe 3.0 x4
- Storage Interface: 3x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
- Networking: 2.5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.3/5.4
- Rear I/O Ports: 2x USB4 (40Gb/s), 3x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 1x HDMI 2.1
- Audio: Realtek ALC1220 Codec (7.1 Channel High Definition Audio)
- Form Factor: ATX (30.5cm x 24.4cm)
