Description
Military-Grade Durability and Performance

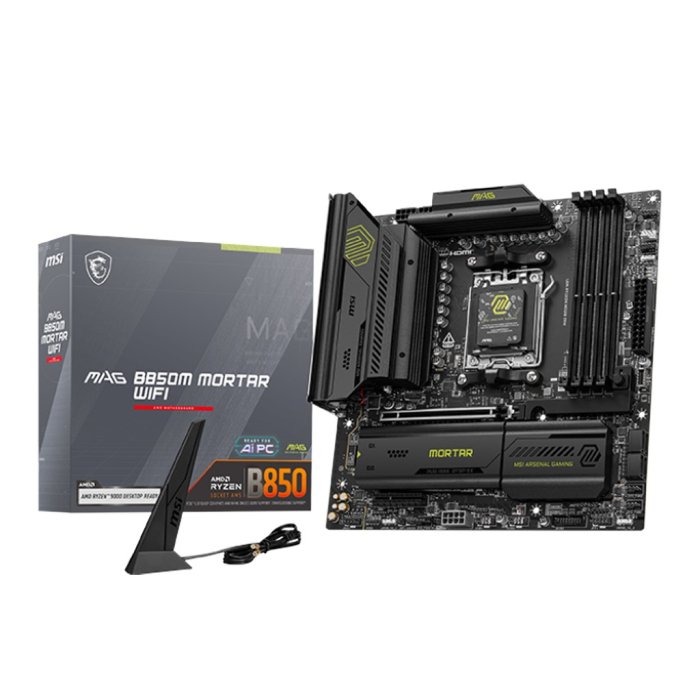

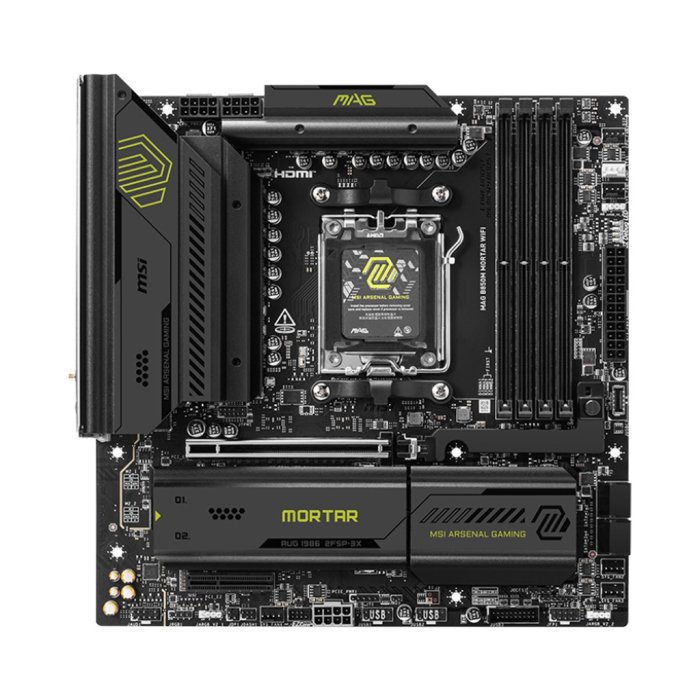

The MSI MAG B850M MORTAR WIFI is a high-caliber Micro-ATX motherboard built for gamers who demand a rock-solid foundation for their systems. Part of the legendary Arsenal Gaming series, it is meticulously engineered to handle the extreme power requirements of the latest AMD Ryzen 9000, 8000, and 7000 series processors. Featuring a robust 12+2+1 Duet Rail Power System with 80A Smart Power Stages, this motherboard provides unwavering stability and peak performance, ensuring your system remains responsive even during the most demanding gaming marathons.
Next-Generation Speed: DDR5 and PCIe 5.0
Elite Thermal Management and Networking
Engineered to lead the future of gaming, the B850M MORTAR WIFI features full support for high-frequency DDR5 memory, optimized through MSI’s Memory Boost technology for superior signal stability. It introduces PCIe 5.0 support on the primary M.2 slot, allowing you to harness the astronomical speeds of Gen5 NVMe SSDs for near-instant loading times. The primary PCIe x16 slot is reinforced with MSI Steel Armor, protecting against physical strain from heavy, modern graphics cards while maintaining maximum data bandwidth.
The MORTAR is renowned for its superior cooling, featuring an extended heatsink with 7W/mK thermal pads to ensure heat is efficiently dissipated from the VRMs. Integrated M.2 Shield Frozr technology protects your SSDs from thermal throttling, keeping them at peak performance under heavy loads. For connectivity, it offers the latest Wi-Fi 6E for ultra-fast wireless speeds and lower latency, alongside a 2.5G LAN port for an elite wired connection. This combination of thermal control and networking makes it an ideal choice for high-performance, compact gaming builds.
Key Specifications
Chipset: AMD B850.
CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).
Memory: 4 x DDR5 Slots, Dual Channel (Supports high-frequency Overclocking).
Power Design: 12+2+1 Duet Rail Power System with 80A Smart Power Stages.
Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor), 1 x PCIe 4.0 x1 Slot.
Storage: 2 x M.2 Slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s Ports.
Networking: Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN.

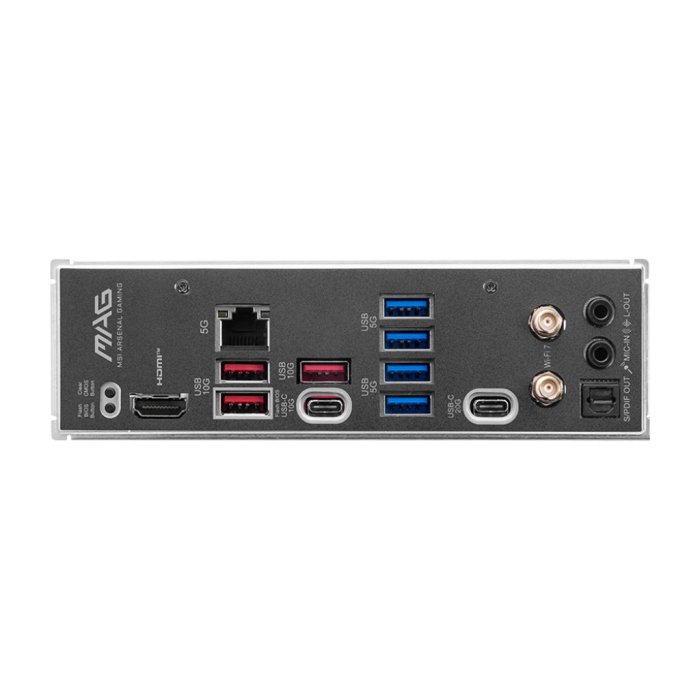

Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Supports 4K @ 60Hz).
Audio: Realtek ALC4080 7.1-Channel High Performance Audio.
USB Ports: Includes USB 3.2 Gen 2×2 (20Gbps) Type-C and multiple Type-A ports.
Form Factor: Micro-ATX (244mm x 244mm).
- Chipset: AMD B850.
- CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).
- Memory: 4 x DDR5 Slots, Dual Channel (Supports high-frequency Overclocking).
- Power Design: 12+2+1 Duet Rail Power System with 80A Smart Power Stages.
- Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor), 1 x PCIe 4.0 x1 Slot.
- Storage: 2 x M.2 Slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s Ports.
- Networking: Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN.
- Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Supports 4K @ 60Hz).
- Audio: Realtek ALC4080 7.1-Channel High Performance Audio.
- USB Ports: Includes USB 3.2 Gen 2×2 (20Gbps) Type-C and multiple Type-A ports.
- Form Factor: Micro-ATX (244mm x 244mm).
