Description
Professional Power for High-End Productivity

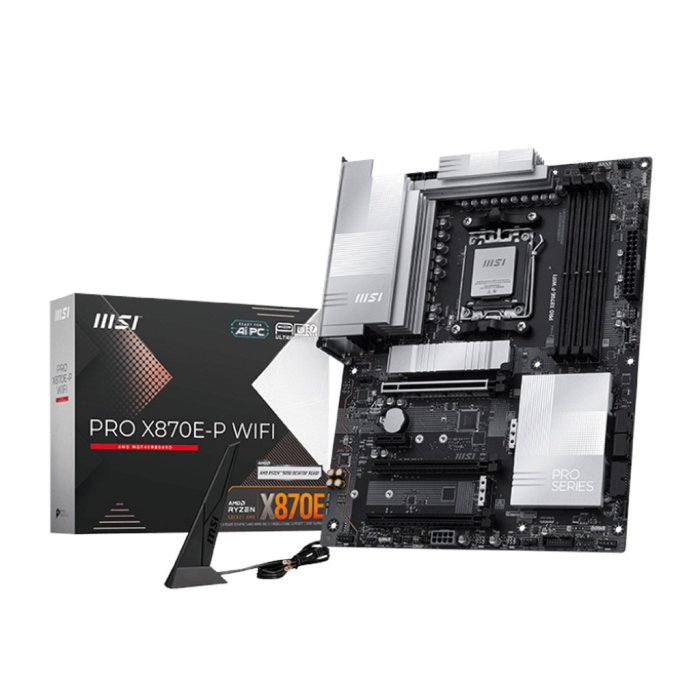

The MSI PRO X870E-P WIFI is a flagship-grade motherboard within the PRO Series, engineered to provide a rock-solid foundation for the most powerful AMD Ryzen 9000, 8000, and 7000 series processors. Utilizing the top-tier X870E chipset, this board is built for professionals who require maximum stability and advanced power delivery. With a robust VRM design and MSI’s Core Boost technology, it ensures a consistent and efficient power supply to the CPU, making it an ideal choice for complex engineering tasks, content creation, and intensive business applications.
Uncompromising Speed with USB4 and PCIe 5.0
Advanced Networking and Intelligent Cooling
Designed to keep pace with modern data demands, the PRO X870E-P WIFI features revolutionary USB4 ports, offering astronomical transfer speeds of up to 40Gbps and support for high-resolution display outputs. It fully integrates the PCIe 5.0 standard for both the primary graphics slot and high-speed M.2 storage, providing the massive bandwidth required for next-generation Gen5 NVMe SSDs. This ensures near-instant data access and seamless multitasking, allowing professionals to work with massive datasets and high-fidelity media without bottlenecks.
Connectivity is elevated with the inclusion of Wi-Fi 7 technology, which utilizes ultra-wide bandwidth for superior wireless speeds and lower latency in high-density environments. For ultra-stable wired connections, a 5G LAN port is included to handle professional-grade network traffic. To maintain peak performance, the motherboard is equipped with an extended heatsink and M.2 Shield Frozr on all storage slots. These premium thermal solutions effectively prevent heat buildup and thermal throttling, ensuring the system remains cool and quiet during sustained heavy workloads.
Key Specifications
Chipset: AMD X870E.
CPU Support:AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).
Memory: 4 x DDR5 Slots, Dual Channel (Supports high-capacity and extreme OC frequencies).
Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor), 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x1 Slot.
Storage: 4 x M.2 Slots (Multiple PCIe 5.0 x4 support), 4 x SATA 6Gb/s Ports.
USB4: 2 x USB4 Ports (40Gbps with DisplayPort Alt Mode).
Networking: Wi-Fi 7, Bluetooth 5.4, and 5Gbps High-Speed LAN.
Display Output: 2 x USB4 (via DP), 1 x HDMI 2.1 (4K @ 120Hz).
Audio: Realtek High Definition Audio.
Form Factor: ATX (304.8mm x 243.8mm).
- Chipset: AMD X870E.
- CPU Support:AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).
- Memory: 4 x DDR5 Slots, Dual Channel (Supports high-capacity and extreme OC frequencies).
- Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor), 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x1 Slot.
- Storage: 4 x M.2 Slots (Multiple PCIe 5.0 x4 support), 4 x SATA 6Gb/s Ports.
- USB4: 2 x USB4 Ports (40Gbps with DisplayPort Alt Mode).
- Networking: Wi-Fi 7, Bluetooth 5.4, and 5Gbps High-Speed LAN.
- Display Output: 2 x USB4 (via DP), 1 x HDMI 2.1 (4K @ 120Hz).
- Audio: Realtek High Definition Audio.
- Form Factor: ATX (304.8mm x 243.8mm).
