Description

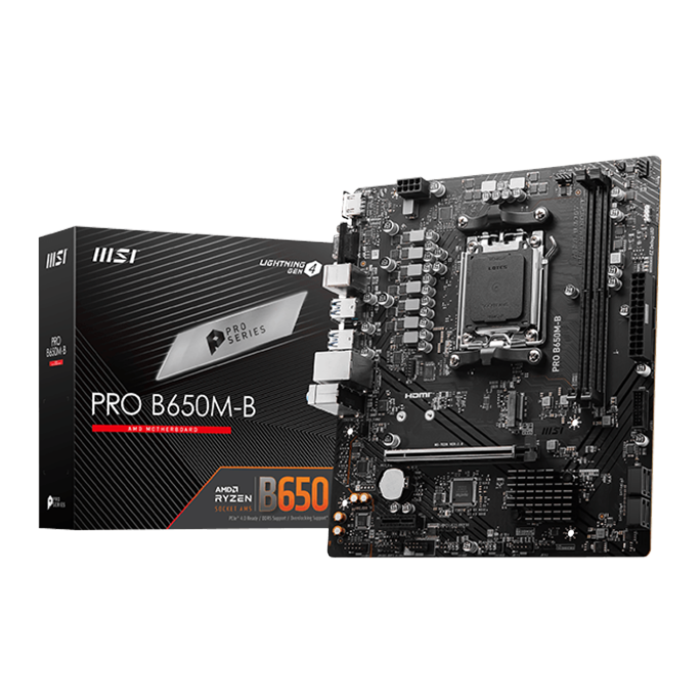

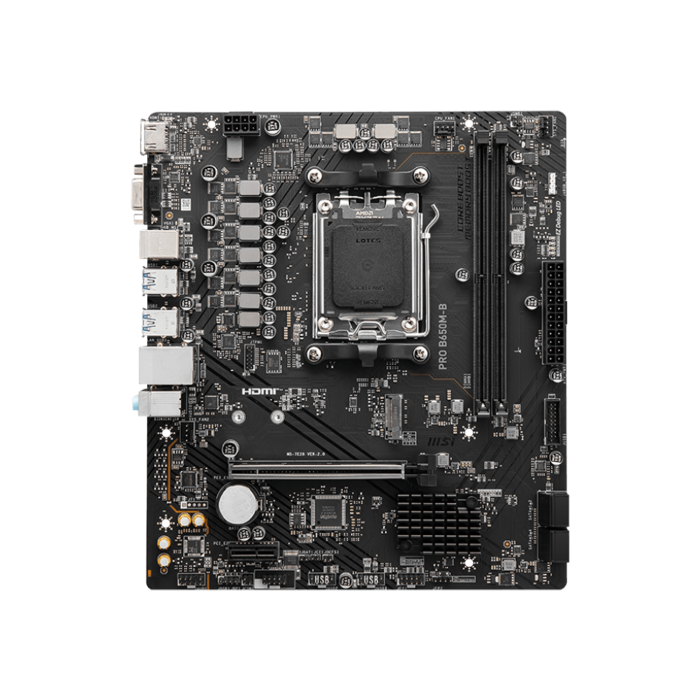

MSI Pro B650M-B AMD DDR5 Gaming Motherboard
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Realtek® RTL8125BG 2.5G LAN
1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
Storage Compatibility
1x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G
1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)• Supports x4 (For Ryzen™ 5 8500G processor)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

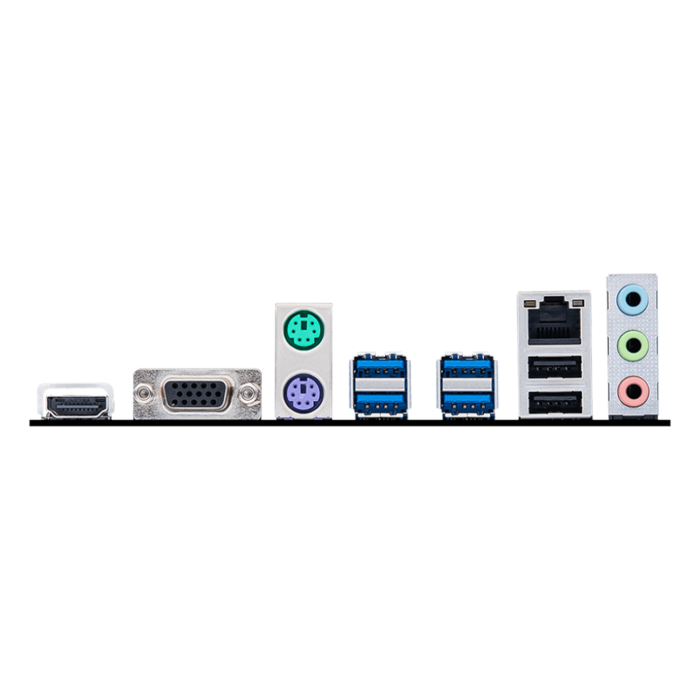

HDMI™VGAKeyboard/MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio connectorsUSB 2.0
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Internal I/O Connectors
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
1 Year ( As per Manufacturer Policy )
