Description

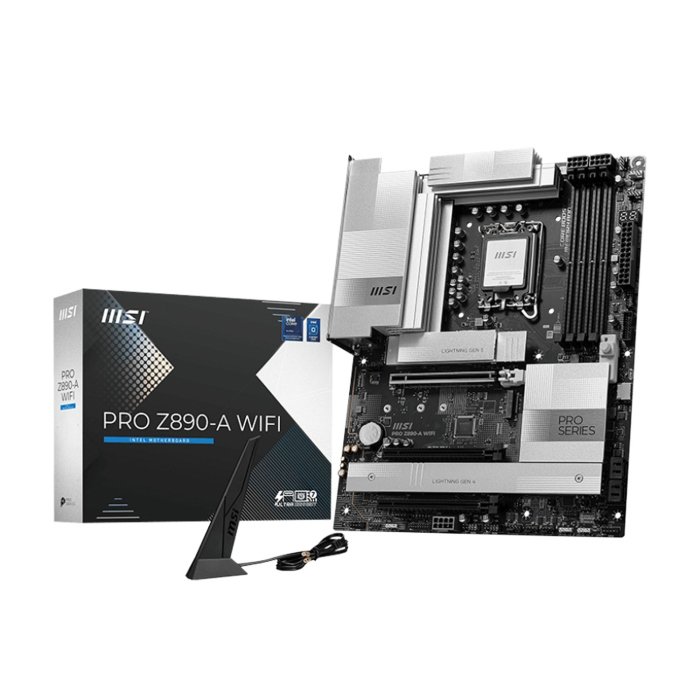

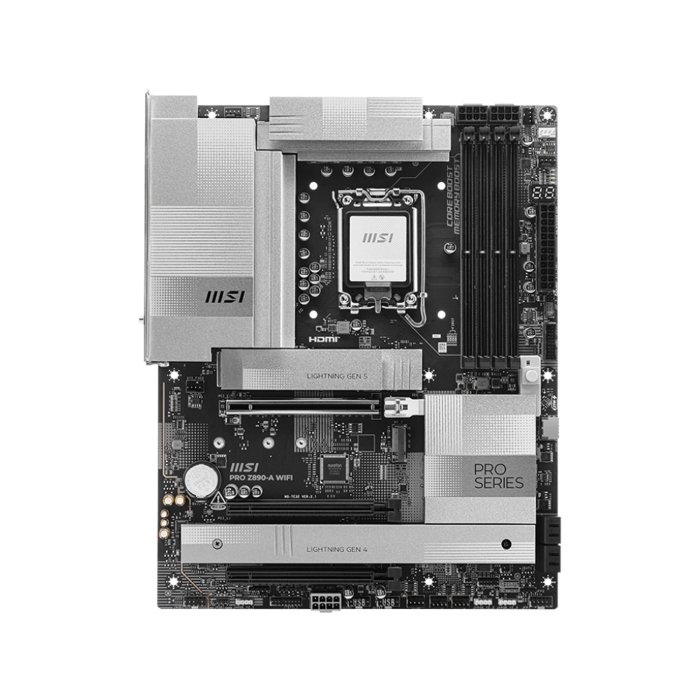

MSI Pro Z890-A Wi-Fi ATX Gaming Motherboard
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Intel® Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM
Realtek® 8126 5Gbps LAN
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9200+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM
Storage Compatibility
4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G

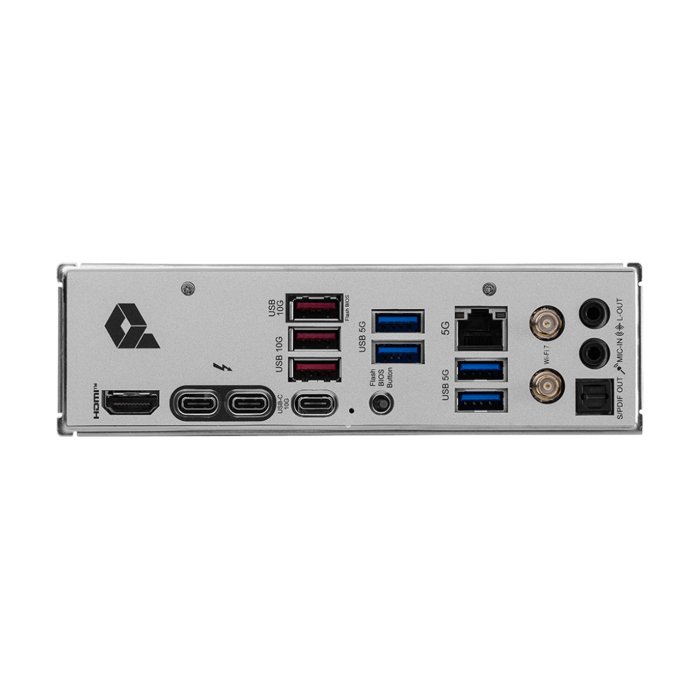

USB 10Gbps Type-AUSB 5Gbps Type-A5G LANWi-Fi / BluetoothAudio ConnectorsHDMI™Thunderbolt™ 4 40Gbps (Type-C)USB 10Gbps Type-CFlash BIOS ButtonUSB 5Gbps Type-AS/PDIF-OUT
USB Ports Front (Support )
4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Realtek® ALC1220P7.1-Channel High Definition AudioSupports S/PDIF output
Internal I/O Connectors
1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C ports
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socketSupports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: dual Thunderbolt™ 4 ports, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
Product Size ( Dimension )
1 Year ( As per Manufacturer Policy )
