Description
Compact Modular Design: Build Your Way

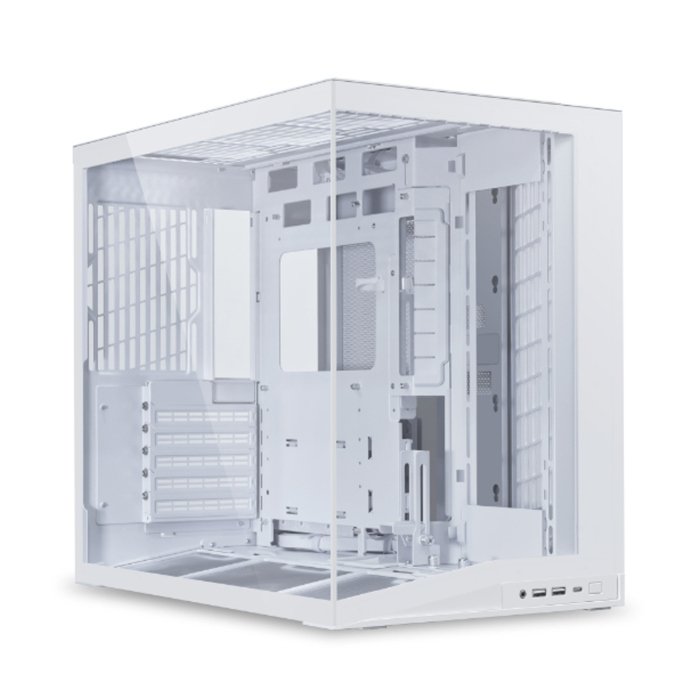

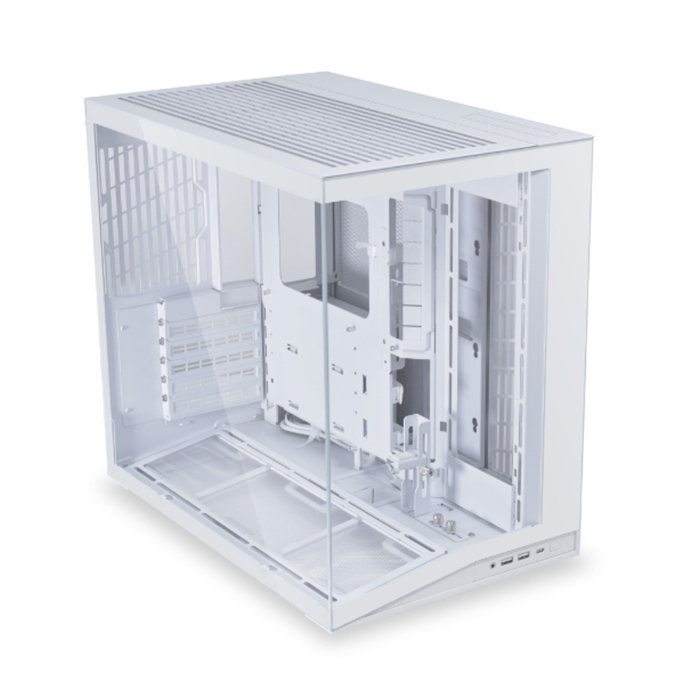

The LIAN LI O11 Dynamic Mini V2 reimagines the iconic O11 series in a more compact footprint without sacrificing the features that made it a legend. Its most innovative feature is the modular rear panel, which allows you to adjust the case to 3-slot, 5-slot, or 7-slot configurations. This flexibility means the case can adapt to accommodate anything from a high-end ATX motherboard down to a specialized Mini-ITX water-cooled system, giving you total control over your internal layout.
Dual-Chamber Aesthetics: A Panoramic View
Unrivaled Cooling Support in a Smaller Frame
Designed for the “Snow Edition” enthusiast, the O11 Mini V2 features a brilliant white finish paired with seamless tempered glass on the front and side panels. The dual-chamber architecture hides the power supply, storage drives, and cables in a dedicated rear compartment, leaving the main chamber perfectly clean. This ensures that your GPU, CPU cooler, and lighting remain the center of attention through a crystal-clear, panoramic window.

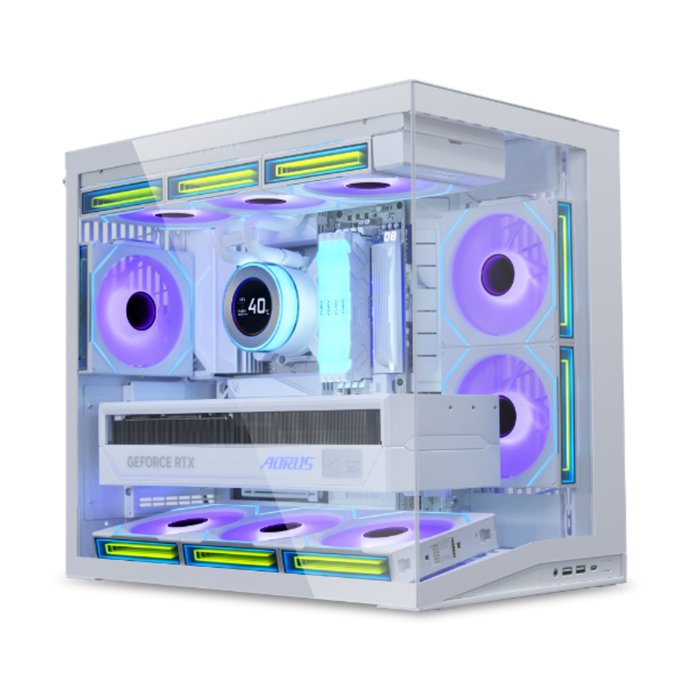

Despite its “Mini” designation, this chassis is a cooling powerhouse. It is engineered to support an incredible array of fan and radiator setups, including the ability to house up to three 360mm radiators simultaneously depending on your motherboard configuration. The ventilated aluminum panels provide high airflow, while the spacious interior ensures even the largest modern graphics cards have ample room to breathe, making it an ideal choice for both air and liquid cooling enthusiasts.
Key Specifications
Case Type: Modular Mid Tower.
Motherboard Support: ATX, Micro-ATX, Mini-ITX (Configuration dependent).
Power Supply Support: SFX / SFX-L Only (Standard ATX PSUs are not compatible).
Materials: 2.0mm Aluminum, Steel, and 4.0mm Tempered Glass.
Fan Support: Up to 9 fans (Fans not included).
Radiator Support: Top (up to 360mm), Side (up to 280mm), Bottom (up to 360mm).
GPU Clearance: Supports cards up to 395mm in length.
Front I/O: 1x USB 3.1 Type-C, 2x USB 3.0, and HD Audio.
Color: Brilliant White.
| Model No | LIAN LI O11 Dynamic Mini V2 ATX Mid Tower Gaming Case |
| Part No | G99.O11DMIV2W.00 |
| Color | White |
| Case Material | 2 mm Aluminum Panels, 1 mm Mesh Panels, 4 mm Tempered Glass |
| Case Size | Mid Tower ATX (Approx. 45.38 L chassis volume) |
| Lighting | No Built?In Lighting |
| Motherboard Support | ATX / Back?Connect ATX / Micro?ATX / Mini?ITX |
| Pre?installed Fans | None (Fans not included) |
| Additional Fan Support | Up to 9 × 120 mm Fans (Top: 3; Side: 2; Bottom: 3; Rear: 1) |
| Radiator Support | Top: Up to 360 mm; Side: Up to 240 mm |
| SSD/HDD Support | Drive Cage: 2 × 2.5? or 2 × 3.5?; Behind MB Tray: 2 × 2.5? |
| I/O Ports | USB 3.0 × 2; USB 3.2 Type?C × 1; Audio × 1; Power Button × 1 |
| CPU Cooler Limitation | Up to ~160 mm Height |
| VGA Limitation | Up to ~400 mm Length |
| PSU Limitation | ATX PSU up to 200 mm Length |
| Dust Filters | Bottom Dust Filter × 1 |
| Product Size (Dimension) | Approx. 423.6 × 273.3 × 391.95 mm (D × W × H) |
| Product Weight | Approx. 20 kg |
| Package Content | Case Body, Screws & Accessories Kit, Manuals |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
