Description

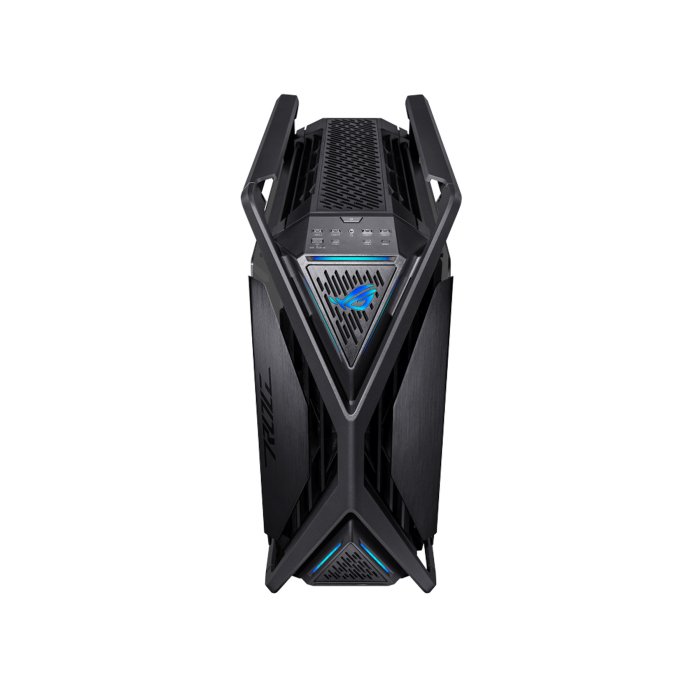

Asus Hyperion GR701 Full Tower E-ATX Gaming Case
90DC00F0-B39000
Motherboard Support
EATX (12″x10.9″)ATXMicro-ATXMini-ITX
5 x 2.5″ Bay2 x 2.5″/3.5″ Combo Bay
Expansion Slots
93 (additional vertical)
Front I/O Port
1 x headphone / Microphone4 x USB 3.2Gen11 x USB 3.2 Gen2 Type CLED Control ButtonReset Button1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type Cthis spec might vary by region
Tempered Glass
Left SideRight Side
Radiator Support (Front)
120 mm140 mm240 mm280 mm360 mm420 mm
Radiator Support (Top)
Radiator Support (Rear)
120 mm140 mm
Cooling Support (Front)
3 x 120 mm3 x 140 mm
Cooling Support (Top)
Cooling Support (Rear)
1 x 120 mm1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mmPWM
Pre-installed Fans (Rear)
1 x 140 mmPWM
Special Features
Extra Cooling: Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilitiesExtra Space: The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channelExtra Convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experienceExtra Power: Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggednessExtra Stylish: The fan hub and lighting panel all support Aura Sync, and the chassis is decked out with anodized metal and hairline finishes
Maximum CPU Cooler Height
Maximum GPU Length
Maximum PSU Length
Removable Dust Filters
FrontTopBottom
Maximum Cable Management Space
Product Size ( Dimension )
268 * 639 * 659 mm
Product Weight
1 Year ( As per Manufacturer Policy )
| Model No | Asus Hyperion GR701 Full Tower E-ATX Gaming Case |
| Part No | 90DC00F0-B39000 |
| Color | Black |
| Motherboard Support | EATX (12″x10.9″)ATXMicro-ATXMini-ITX |
| Drive Bays | 5 x 2.5″ Bay2 x 2.5″/3.5″ Combo Bay |
| Expansion Slots | 93 (additional vertical) |
| Front I/O Port | 1 x headphone / Microphone4 x USB 3.2Gen11 x USB 3.2 Gen2 Type CLED Control ButtonReset Button1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type Cthis spec might vary by region |
| Tempered Glass | Left SideRight Side |
| Radiator Support (Front) | 120 mm140 mm240 mm280 mm360 mm420 mm |
| Radiator Support (Top) | 120 mm140 mm240 mm280 mm360 mm420 mm |
| Radiator Support (Rear) | 120 mm140 mm |
| Cooling Support (Front) | 3 x 120 mm3 x 140 mm |
| Cooling Support (Top) | 3 x 120 mm3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm1 x 140 mm |
| Pre-installed Fans (Front) | 3 x 140 mmPWM |
| Pre-installed Fans (Rear) | 1 x 140 mmPWM |
| Special Features | Extra Cooling: Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilitiesExtra Space: The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channelExtra Convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experienceExtra Power: Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggednessExtra Stylish: The fan hub and lighting panel all support Aura Sync, and the chassis is decked out with anodized metal and hairline finishes |
| Maximum CPU Cooler Height | 190 mm |
| Maximum GPU Length | 460 mm |
| Maximum PSU Length | 240 mm |
| Removable Dust Filters | FrontTopBottom |
| Maximum Cable Management Space | 34 mm |
| Product Size ( Dimension ) | 268 * 639 * 659 mm |
| Product Weight | 20.8 Kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
