Description
WiFi 7 WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Ultra-Fast 9214 Mbps 6-Stream Tri-Band WiFi
Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading.
6 High Gain Antennas with Beamforming, for Broader Coverage
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
| WIRELESS | |
|---|---|
| WiFi Speeds | BE9300 6 GHz: 5760 Mbps (802.11be) 5 GHz: 2880 Mbps (802.11be) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses 6× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High Tri-Band Allocate devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| Advanced Functions | Multi-Link Operation (MLO) 320 MHz Channel 4K-QAM Multi-RUs EasyMesh-Compatible Works with Alexa and Google Assistant IoT Network |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN Server PPTP VPN Server L2TP VPN Server WireGuard VPN Server |
| VPN Client | Open VPN Client PPTP VPN Client L2TP VPN Client WireGuard VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|

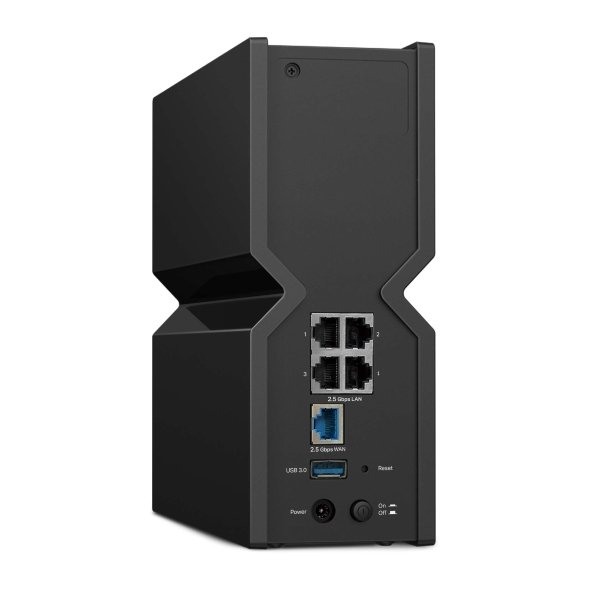

| Ethernet Ports | 1× 2.5 Gbps WAN 4× 2.5 Gbps LAN |
| USB Support | 1× USB 3.0 Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: FTP Server Media Server Samba Server |
| Buttons | Power On/Off Button Wi-Fi On/Off Button LED Button WPS Button Reset Button |
| Power | 12 V ? 3.3 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kit | HomeShield Learn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Type | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |
| Package Contents | Wi-Fi 7 Router Archer BE550 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
