Description

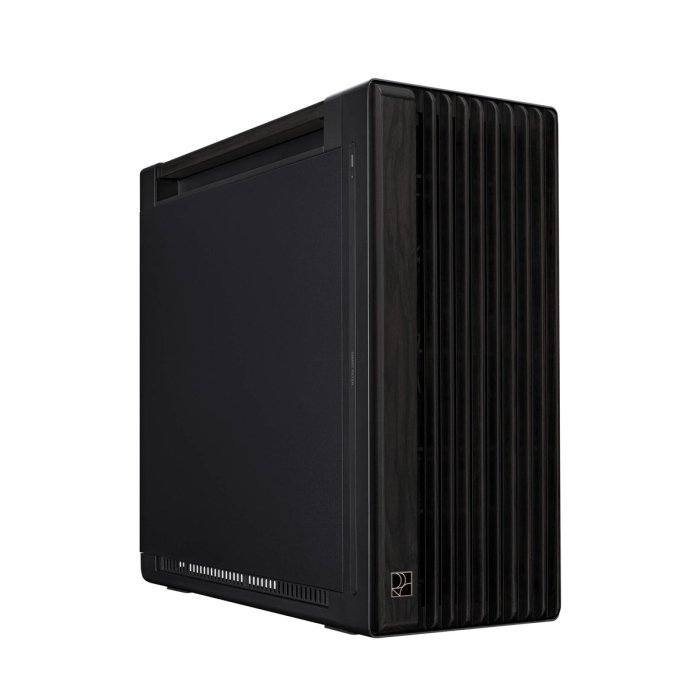

ASUS ProArt PA602 Wood Edition
Elegant Craftsmanship with Sustainable Design

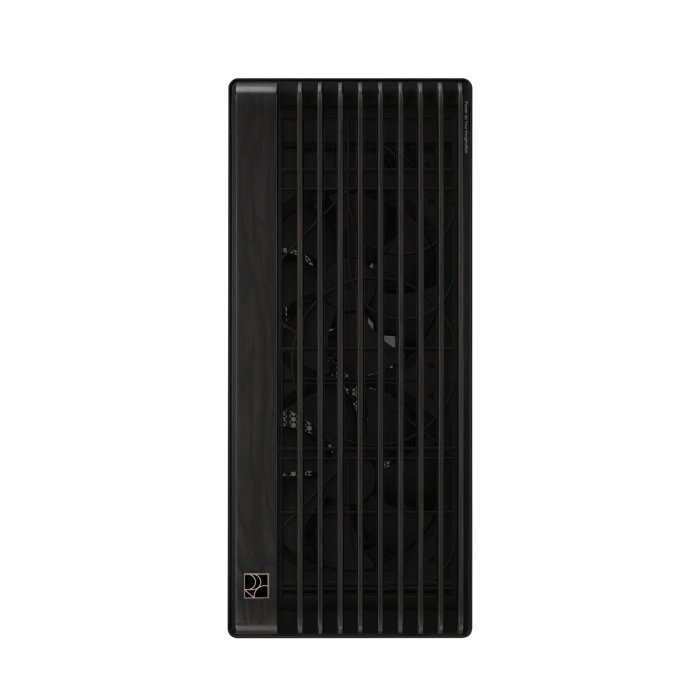

The ProArt PA602 Wood Edition distinguishes itself with a refined aestheticintegrating FSC®?certified ash wood accents along the front panel, top handles and I/O bezel for a look that blends professional design with natural materials. Its minimalist build ensures it complements any studio or workspace environment, while still delivering robust physical design and durability.
Exceptional Cooling & Spacious Interior
Built for Creators: Features That Matter

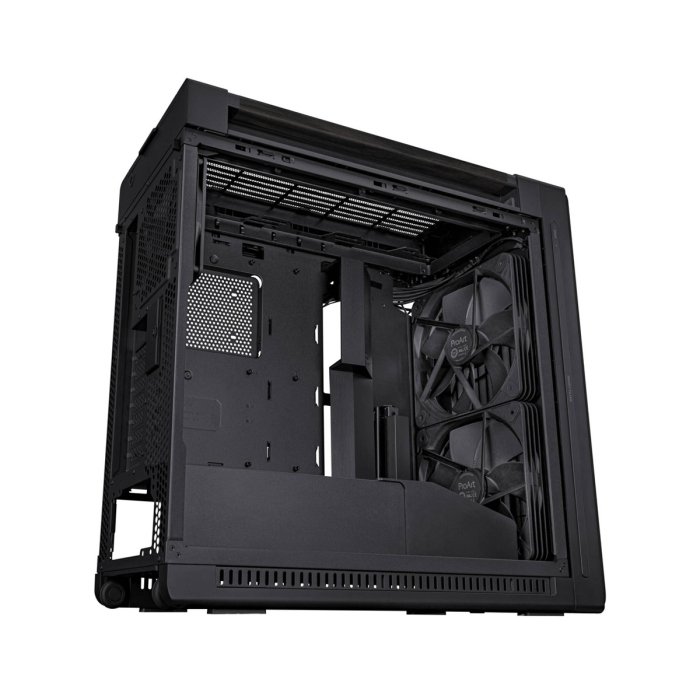

This mid?tower supports E?ATX to Mini?ITX motherboards, and comes pre?installed with two large 200 mm front fans and one 140 mm rear fan to deliver excellent airflow right out of the box. The case is also designed to handle up to a 420 mm radiator on top, offering advanced liquid?cooling support for high?performance builds.
Beyond looks and cooling, the PA602 includes thoughtful creator?centric features: a tool?free graphics card mount, integrated PWM fan hub, front I/O with a 20 Gb/s USB?C, and dust?sensor indicators for maintenance.With these utilities, it is well?suited for both high?end gaming rigs and content?creation workstations.
Short Specification
Model: ASUS ProArt PA602 Wood Edition
Case Type: Mid?Tower
Supported Motherboards: E?ATX (12? × 10.9?), ATX, Micro?ATX, Mini?ITX, DTX, Mini?DTX
Drive Bays: 4 × 2.5? + 4 × 2.5?/3.5? combo
Expansion Slots: 8 + 2 (vertical GPU support)
Front I/O Ports: 2 × USB 3.2 Gen1 + 1 × USB 3.2 Gen2×2 Type?C + 2 × USB 2.0 + Fan Control & Reset Buttons
Cooling / Radiator Support:
Front: 2 × 200 mm fans (pre?installed)
Rear: 1 × 140mm fan (pre?installed)
Top: Up to 420 mm radiator support
Max CPU Cooler Height: 190 mm Max GPU Length: ~440 mm
Max PSU Length: ~190 mm
Cable Management Space: Up to 30 mm
Dimensions (H × D × W): 593 × 560 × 245 mm
Weight: Approximately 15.8 kg
Material & Design: Steel + aluminum + FSC?certified ash wood accents on front/top handles (for the Wood Edition)
| Model No | ProArt PA602 Wood Edition – Black |
| Part No | 90DC00J0-B09020 |
| Color | Black with natural wood front panel accents |
| Case Material | Steel frame, wood panel accents, and tempered glass / metal side panel options |
| Case Size / Type | Mid Tower (Creator Series) |
| Lighting | Minimal aesthetic lighting, IR dust indicator (no RGB) |
| Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX, DTX, Mini-DTX |
| Pre-installed Fans | 2 × 200 mm front fans (38 mm thick) 1 × 140 mm rear fan |
| Additional Fan Support | Top: up to 3 × 120 mm or 3 × 140 mm Rear: 1 × 120 mm or 1 × 140 mm |
| Radiator Support | Top: up to 420 mm Front: up to 360 mm Rear: up to 140 mm |
| SSD / HDD Support | 4 × 2.5″ bays 4 × 2.5″/3.5″ combo bays |
| I/O Ports | 2 × USB 3.2 Gen1 Type-A 1 × USB 3.2 Gen2x2 Type-C 2 × USB 2.0 Fan control button Reset button IR dust indicator |
| CPU Cooler Limitation (Max Height) | 185 mm |
| VGA (GPU) Limitation (Max Length) | 440 mm (horizontal mounting) |
| PSU Limitation (Max Length) | 190 mm |
| Dust Filters | Removable dust filters on top, front, and bottom |
| Product Size (Dimension) | 593 × 560 × 245 mm (Depth × Height × Width) |
| Product Weight | Approx. 15.8 kg |
| Package Content | Case chassis, pre-installed fans, mounting accessories, screws, cable ties, user manual, fan hub, and GPU support clamp |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
