Description
DAHUA Detachable PC Module – i7, 16GB, 256GB (NVMe M.2 SSD), DOS (Without OS) – Desktop
DHI-HMC5100X-H-708C2-W10A-BW
Intel Comet Lake/Rocket LakeLGA1200Max. TDP 65 W
Motherboard
2 × SO-DIMM DDR4Max. RAM: 2 × 16 GB
1 × M.2 2280 NVMe SSD1 × SATA 2.5″” SSD/HDD (height ? 7.5 mm)
Power Supply
Power Supply12/19 VDC, 7.5/4.7 APower Consumption90 W

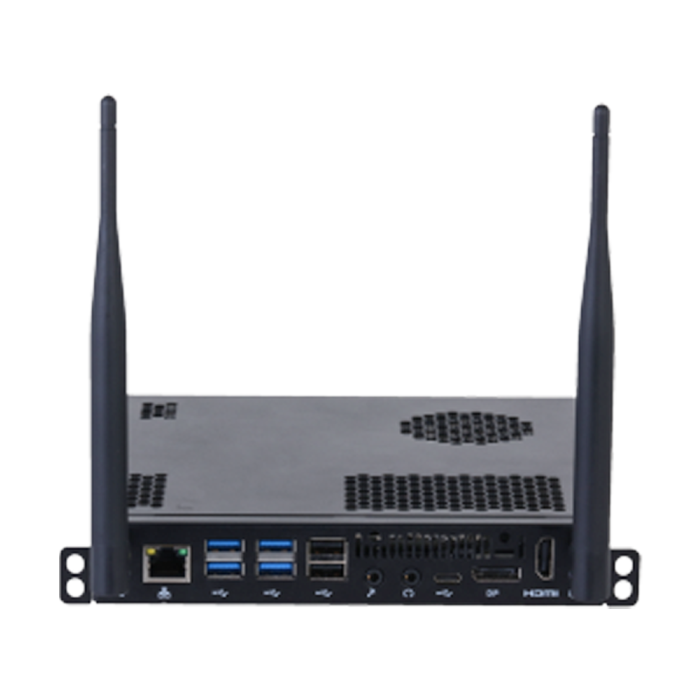

Front Panel1 × RJ-45, 10/100/1000Mbps1 × HDMI 1.4, up to 4K, 30 Hz1 × DP 1.4, up to 4K, 60 Hz4 × USB 3.0, 2 × USB 2.01 × MIC IN, 1 ×LINE OUT2 × Wi-Fi/BT antenna1 × Type C1 × Power button1 × HDD indicator lightBack Panel1 x JAE 80pin: 1 × DC IN, 1 × HDMI 2.0, 1 × USB3.0, 2 × USB 2.0, 1 × UART, 1 × LINE OUT1 x 2.5 / 5.5 DC IN JACK
1 Year on Parts only (As per Manufacturer Policy)No Warranty For Software’s/Games Malfunctioning
Audio/Video Call Assistance Available
| Model | DAHUA Detachable PC Module – i7, 16GB, 256GB (NVMe M.2 SSD), DOS (Without OS) – Desktop |
| Part No | DHI-HMC5100X-H-708C2-W10A-BW |
| Processor | Intel Comet Lake/Rocket LakeLGA1200Max. TDP 65 W |
| Motherboard | Intel H510 |
| Memory | 2 × SO-DIMM DDR4Max. RAM: 2 × 16 GB |
| SSD | 1 × M.2 2280 NVMe SSD1 × SATA 2.5″” SSD/HDD (height ? 7.5 mm) |
| Graphics | N/A |
| Power Supply | Power Supply12/19 VDC, 7.5/4.7 APower Consumption90 W |
| I/O Ports | Front Panel1 × RJ-45, 10/100/1000Mbps1 × HDMI 1.4, up to 4K, 30 Hz1 × DP 1.4, up to 4K, 60 Hz4 × USB 3.0, 2 × USB 2.01 × MIC IN, 1 ×LINE OUT2 × Wi-Fi/BT antenna1 × Type C1 × Power button1 × HDD indicator lightBack Panel1 x JAE 80pin: 1 × DC IN, 1 × HDMI 2.0, 1 × USB3.0, 2 × USB 2.0, 1 × UART, 1 × LINE OUT1 x 2.5 / 5.5 DC IN JACK |
| Warranty | 1 Year on Parts only (As per Manufacturer Policy)No Warranty For Software’s/Games Malfunctioning |
| Support | Audio/Video Call Assistance Available |
