Description

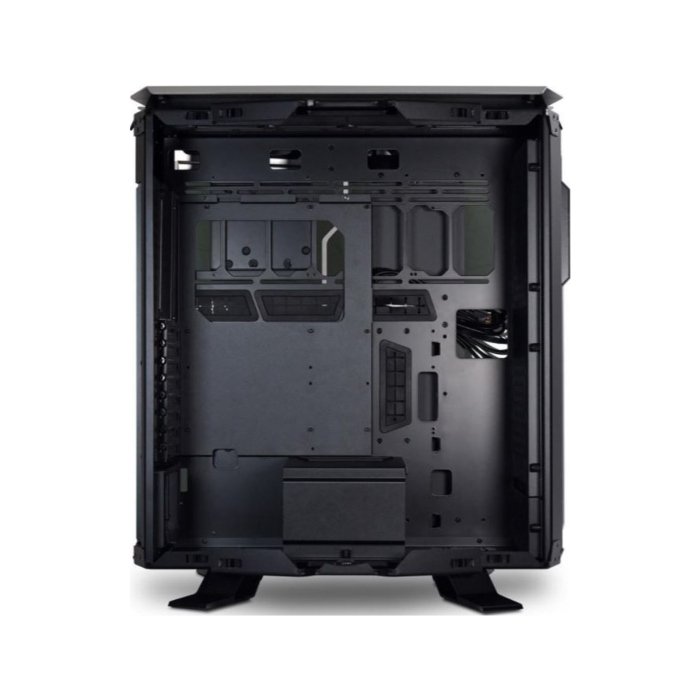

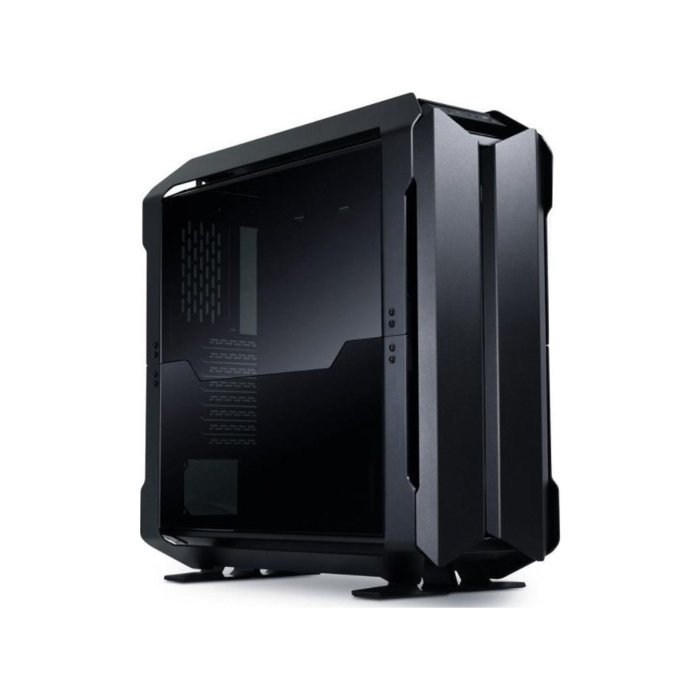

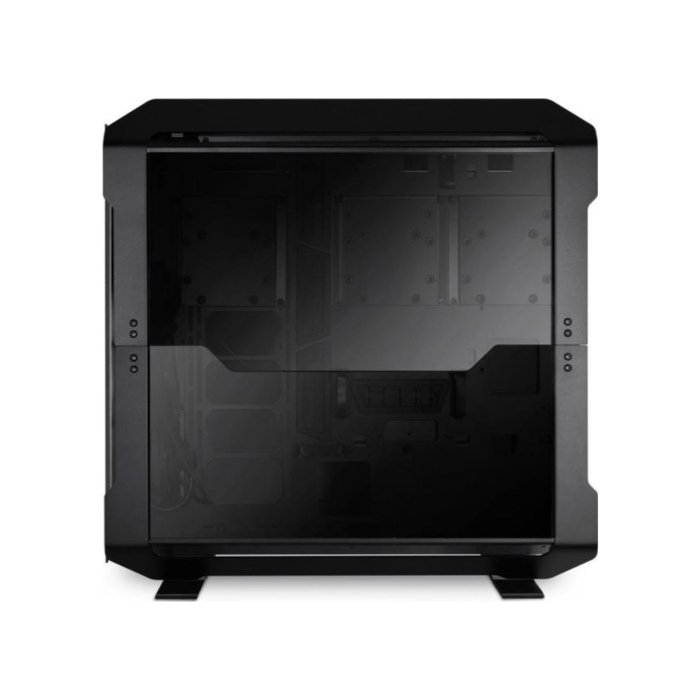

Lian Li TR-01 Odyssey X
G99.TR01X.00
Case Material
Aluminum, Steel, 4.0mm Tempered Glass (Both Side Panels)
No Built-in Lighting
Motherboard Support
SSI-EEB / E-ATX / ATX / Micro-ATX / Mini-ITX
Pre-installed Fans
Additional Fan Support
Front: 3×120mm / 2×140mm Top: 3×120mm / 2×140mm Side: 3×120mm / 2×140mm Bottom (Rotate/Performance mode): up to 4×120mm / 3×140mm
Radiator Support
Front: up to 480mm Top: up to 360mm Side: up to 360mm Bottom: up to 480mm (mode dependent)
SSD/HDD Support
3× 3.5″ HDD or 3× 2.5″ SSD
2× USB 3.0, 1× USB-C (USB 3.1), HD Audio (Mic + Headphone)
CPU Cooler Limitation
Up to 167mm Height
VGA Limitation
Up to 423mm Length
PSU Limitation
ATX PSU, Max Length 280mm
Dust Filters
Not Included
Product Size ( Dimension )
575.5 × 234 × 558.5 mm (Dynamic layout)
Product Weight
Approx. 19 kg (Package ~42 lb / 19 kg)
Package Content
PC Case, Mounting Accessories, Manual
1 Year ( As per Manufacturer Policy )
| Model No | Lian Li TR-01 Odyssey X |
| Part No | G99.TR01X.00 |
| Color | Black |
| Case Material | Aluminum, Steel, 4.0mm Tempered Glass (Both Side Panels) |
| Case Size | Full Tower |
| Lighting | No Built-in Lighting |
| Motherboard Support | SSI-EEB / E-ATX / ATX / Micro-ATX / Mini-ITX |
| Pre-installed Fans | None |
| Additional Fan Support | Front: 3×120mm / 2×140mm Top: 3×120mm / 2×140mm Side: 3×120mm / 2×140mm Bottom (Rotate/Performance mode): up to 4×120mm / 3×140mm |
| Radiator Support | Front: up to 480mm Top: up to 360mm Side: up to 360mm Bottom: up to 480mm (mode dependent) |
| SSD/HDD Support | 3× 3.5″ HDD or 3× 2.5″ SSD |
| I/O Ports | 2× USB 3.0, 1× USB-C (USB 3.1), HD Audio (Mic + Headphone) |
| CPU Cooler Limitation | Up to 167mm Height |
| VGA Limitation | Up to 423mm Length |
| PSU Limitation | ATX PSU, Max Length 280mm |
| Dust Filters | Not Included |
| Product Size ( Dimension ) | 575.5 × 234 × 558.5 mm (Dynamic layout) |
| Product Weight | Approx. 19 kg (Package ~42 lb / 19 kg) |
| Package Content | PC Case, Mounting Accessories, Manual |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
