Description

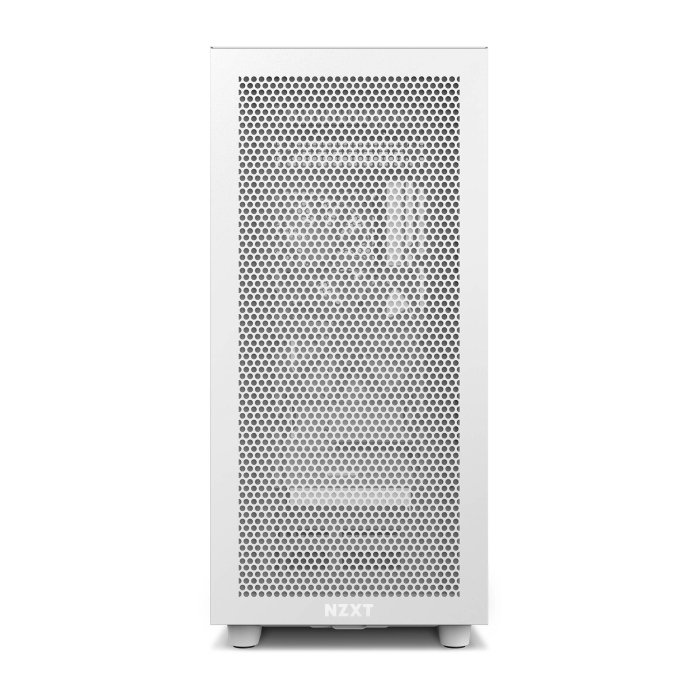

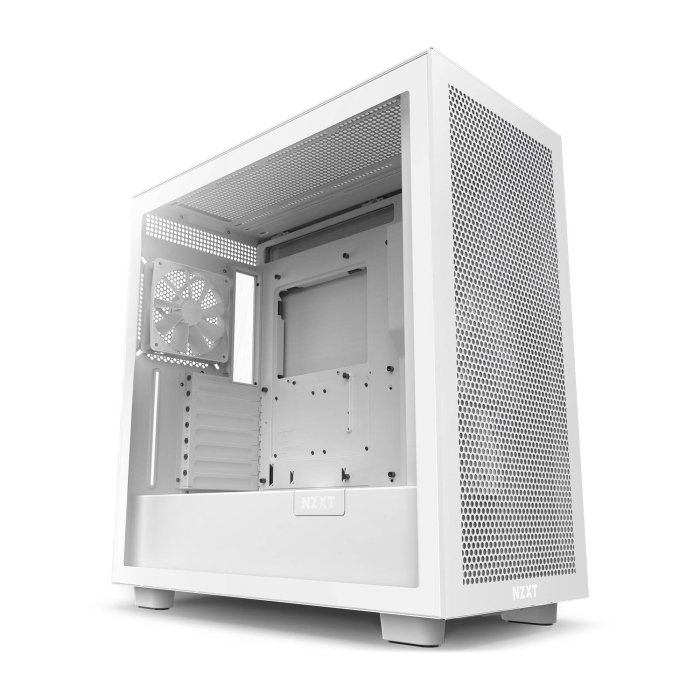

NZXT H7 FLOW ATX MID TOWER CASE
The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
HIGH-PERFORMANCE AIRFLOW
BUILT-IN RGB LIGHTING
READY FOR PERFORMANCE
SPACIOUS COOLING SUPPORT
EASILY ROUTE CABLES
Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Includes three pre-installed F140 RGB Core fans that connect to a standard 5V ARGB header.
Fits most NVIDIA GeForce RTX 40 Series graphics cards with its 365mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.**Sold separately. Reduces clearance to 349mm.
Up to 360mm radiator or 3 x 140mm fan support in the front and top panels.
Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management
| Model No | NZXT H7 Flow ATX Mid Tower Case |
| Part No | CM-H71FW-R1 |
| Color | White |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass |
| Case Size | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Pre-installed Fans | 4 x Fans |
| Fan Specs | Model:F120Q (Case Version)Speed:1200 ± 240RPMAirflow:62.18 CFMStatic:1.05 mm – H2ONoise:25.1 dBAFan Connector:3-pin |
| Additional Fan Support | Front:3 x 120mm / 3 x 140mm (3 x 140mm included)Top:3 x 120mm / 2 x 140mmRear:1 x 120mm / 1 x 140mm (1 x 140mm included)Filters:All Air Intakes |
| Radiator Support | Front:Up to 360mm with Push/PullTop:Up to 360mmRear:Up to 140mm |
| Drive Bays | 2.5″:4+23.5″:2 |
| I/O Ports | USB 3.2 Gen 1 Type-A:2USB 3.2 Gen 2 Type-C:1Headset Audio Jack:1 |
| Expansion Slots | 7 |
| CPU Cooler Limitation | Up to 185mm |
| VGA Limitation | Up to 400mm |
| Cable Management | 18-22mm |
| Product Size ( Dimension ) | Height : 505mm (With Feet)Width : 230mmDepth : 480mm |
| Product Weight | 10.05 kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
