Description
Higher Cost-Effective,
Better Performance Network
Gigabit Broadband Internet Access
All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three gigabit ethernet LAN ports for fast, reliable wired connections.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2-3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|

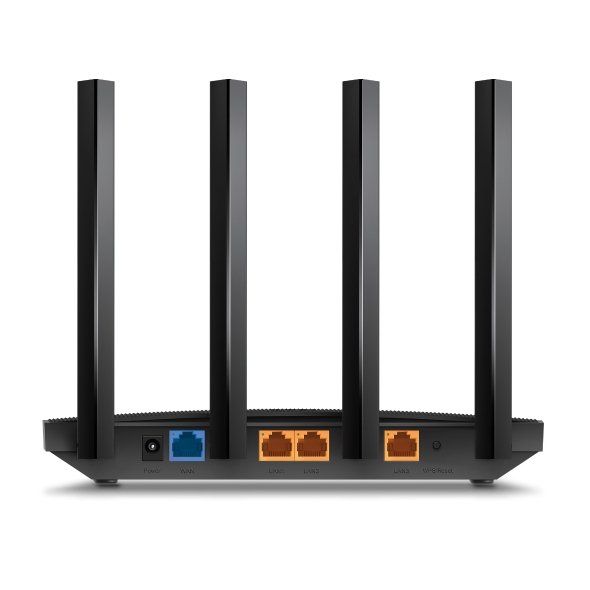

| Ethernet Ports | 1× Gigabit WAN Port 3× Gigabit LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA2-PSK WPA2-PSK/WPA-PSK WPA3-Personal WPA3-Personal/WPA2-PSK WPA2-Enterprise WPA/WPA2-Enterprise encryptions |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm 2.4 GHz: 11g 6Mbps: -96 54Mbps: -80 HT20-MCS0: -97 MCS7: -78 HT40-MCS0: -94 MCS7: -75 |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm) |
| Package Contents | Wireless Router Archer AX12 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
