Description
Smooth Entertainment with AC1200 Dual Band WiFi
The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4 GHz band delivers
speeds up to 300 Mbps allowing you to email and browse the web, while the 5 GHz band delivers speeds up to
867 Mbps making it ideal for HD video streaming and lag-free online gaming.

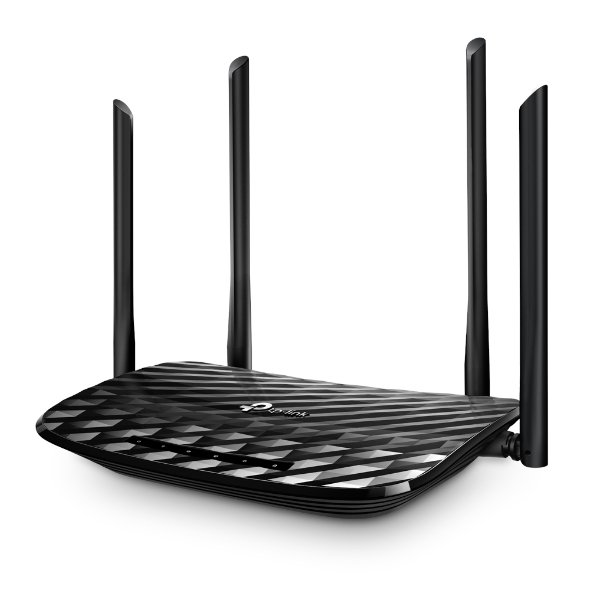

5 High-Performance Antennas for
WiFi Coverage throughout Your Home
Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer C6 provides ideal WiFi coverage.
Access Point Mode
Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.
MU-MIMO
Increases Speed, Throughput, Capacity
MU-MIMO enables the Archer C6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.

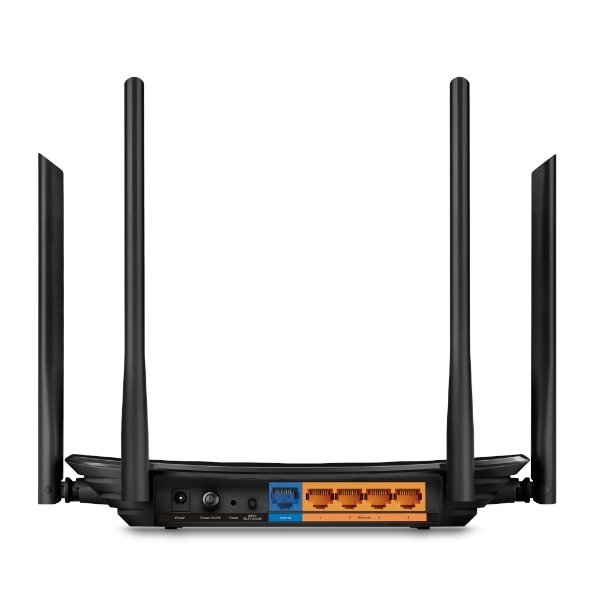

Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet
connection. Connect an Ethernet cable from the router’s Gigabit Ethernet port to your favorite gaming consoles, smart TV’s and more for reliable high-speed connections.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | 1.2 GHz CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA WPA2 WPA3 |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Package Contents | Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
