Description
Ultra-Range Wireless Coverage
4 × 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
Ultra-Fast AX6000 WiFi 6 Speeds
Easy Deployment and Higher Performance with Omada Mesh
Easy Pairing, Less Wiring
| HARDWARE FEATURES | |
|---|---|

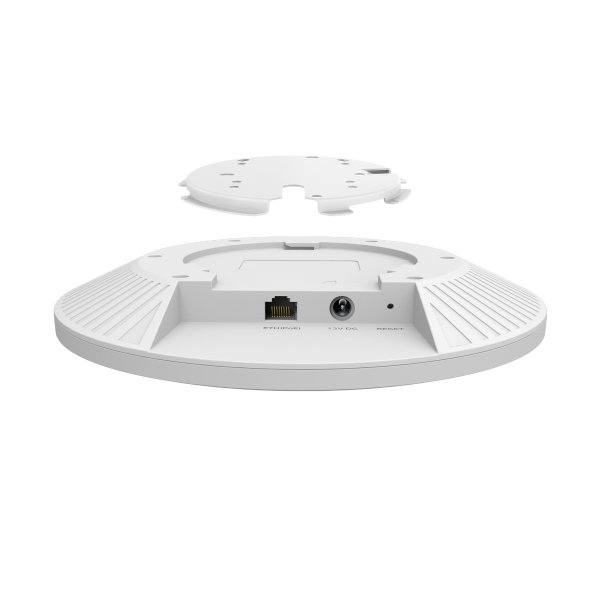

| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | 802.3at PoE 12 V / 2 A DCNote?Power adapter is not included. |
| Power Consumption | EU: 20.43W US: 23.69W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni 2.4 GHz: 4× 4 dBi 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 185?(2000ft²)*** |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO (4*4 MU-MIMO DL&UL) MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO] HE160 (160 MHz Bandwidth) Seamless Roaming(802.11k/v/r) § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE,FCC,RoHS |
| Package Contents | EAP683 UR Ceiling/Wall Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 040 ? (32104 ?) Storage Temperature: -4070 ? (-40158 ?) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
