Description
Ultra-Thin Enterprise Wi-Fi 7 Access Point EAP772
Ultra-Thin Design for Flexible Deployment

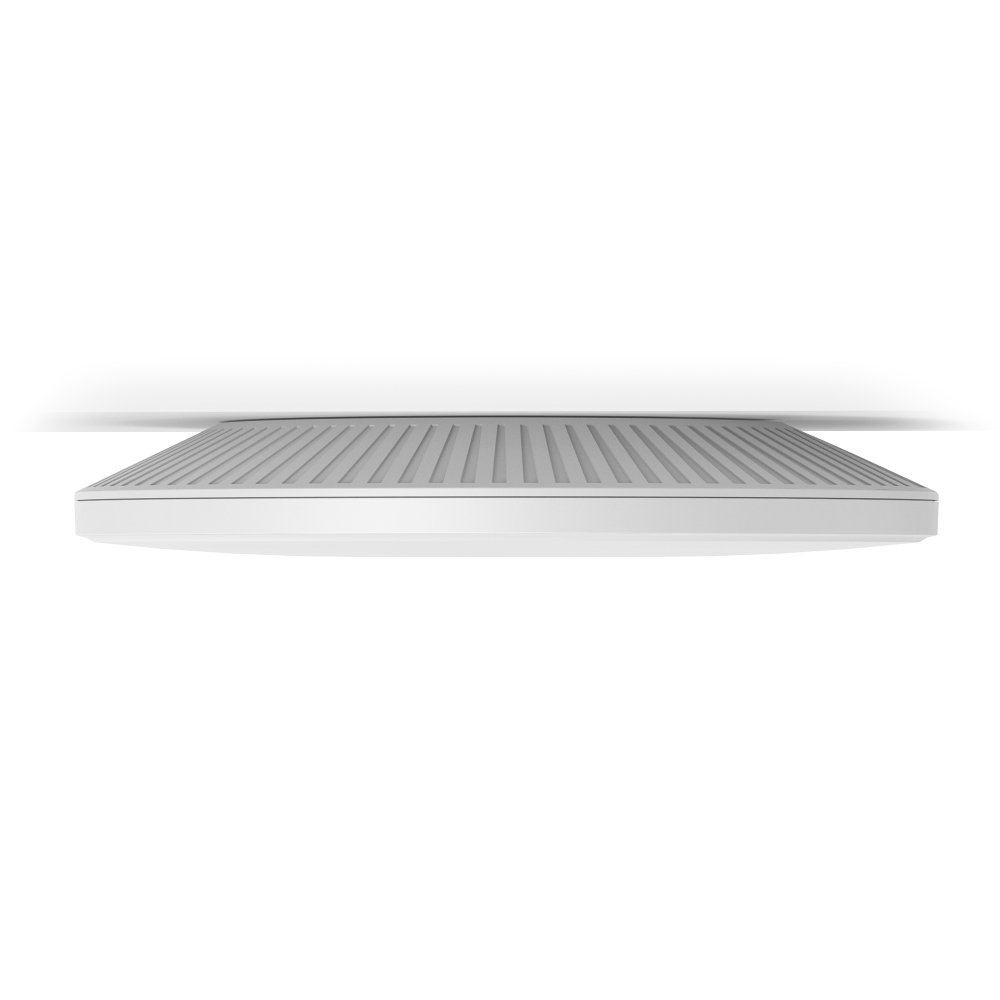

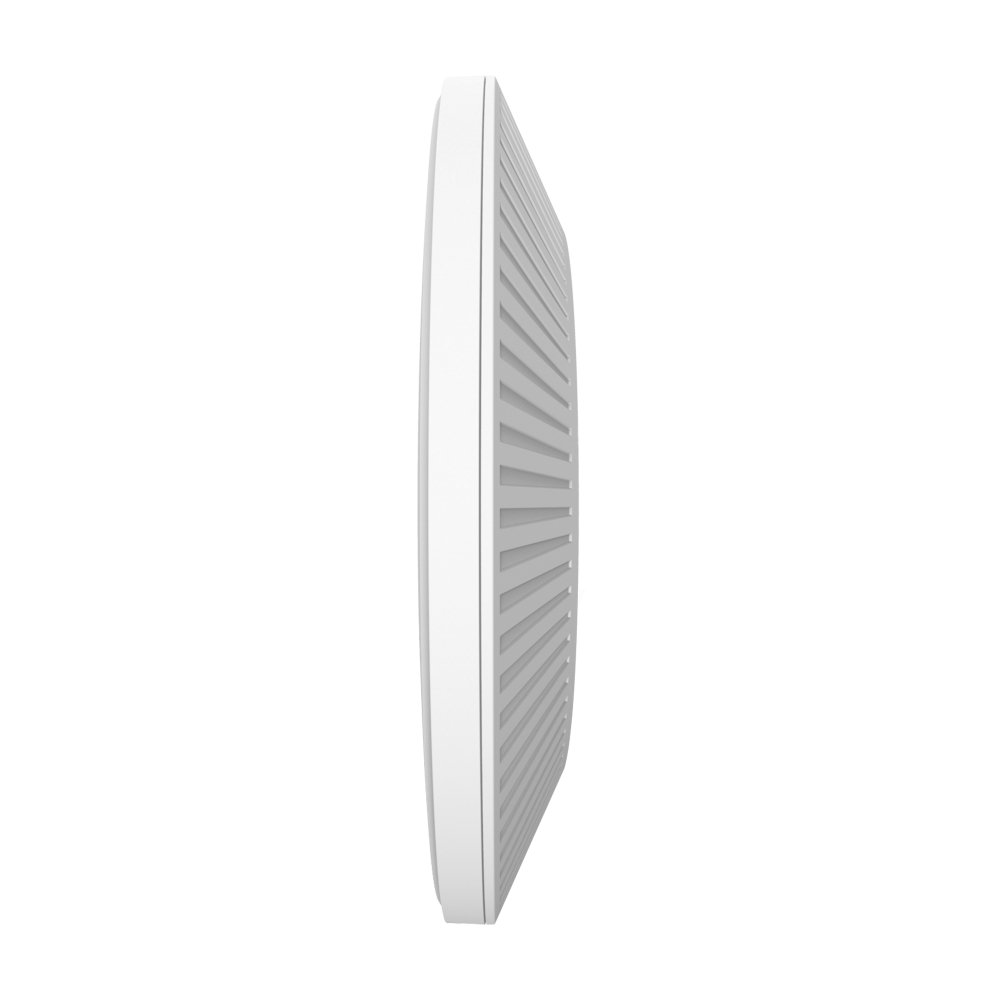

The overall design of EAP772 utilises a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Wi-Fi 7: Swifter, Smoother, Stronger
Software Defined Networking (SDN) with Cloud Access
Boosted Network Security
| Interface | 1× 2.5G Ethernet Port |
|---|---|
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Power Consumption | 25.44 W (For PoE); 22.57 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | 2.4 GHz: 2× 4.0 dBi 5 GHz: 2× 5.0 dBi 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |

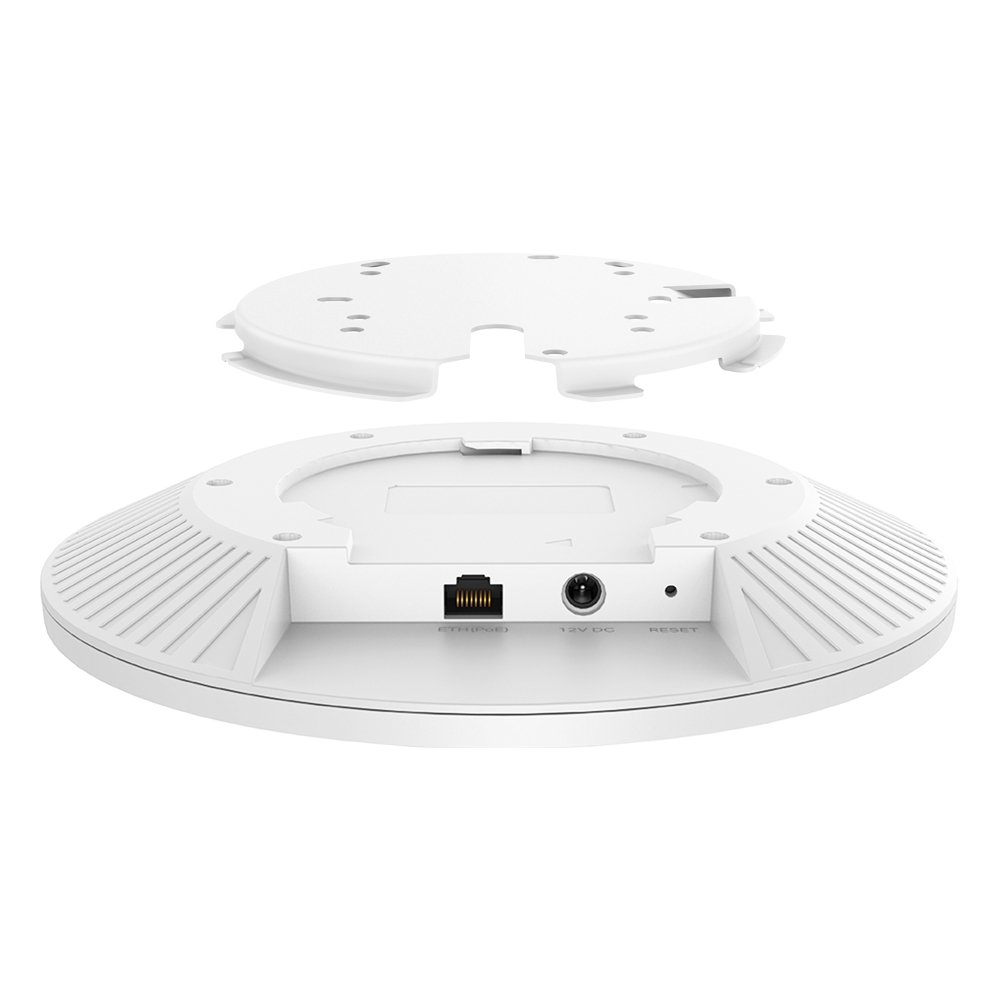

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Client Capacity | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | MLO 4K-QAM MU-MIMO EHT320 Mesh? BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS:24(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security | Captive Portal Authentication? Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25dBm ?2.4GHz? < 25dBm ?5GHz? < 23dBm ?6GHz? |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP772 Installation Guide Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included. |
| Environment | Operating Temperature: 0 °C40 °C (32 °F104 °F); Storage Temperature: -40 °C70 °C (-40 °F158 °F); Operating Humidity: 10%90% non-condensing; Storage Humidity: 5%90% non-condensing; |
