Description
Increase Performance
Let Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly.
Plug and Play

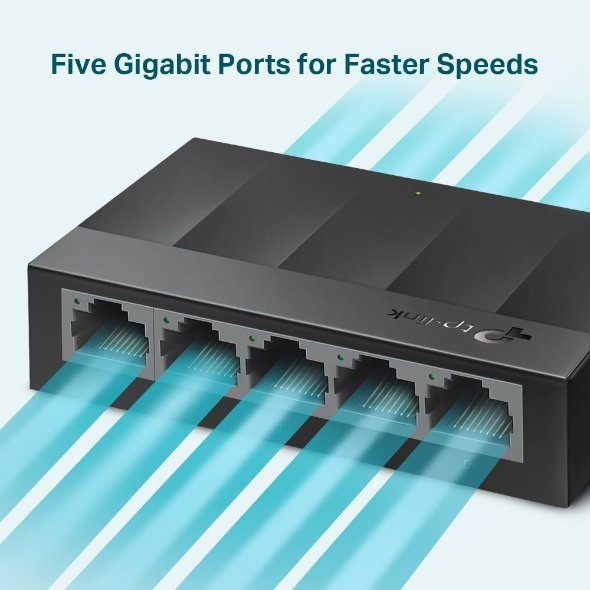

Gigabit Ports For More Reliable Speeds

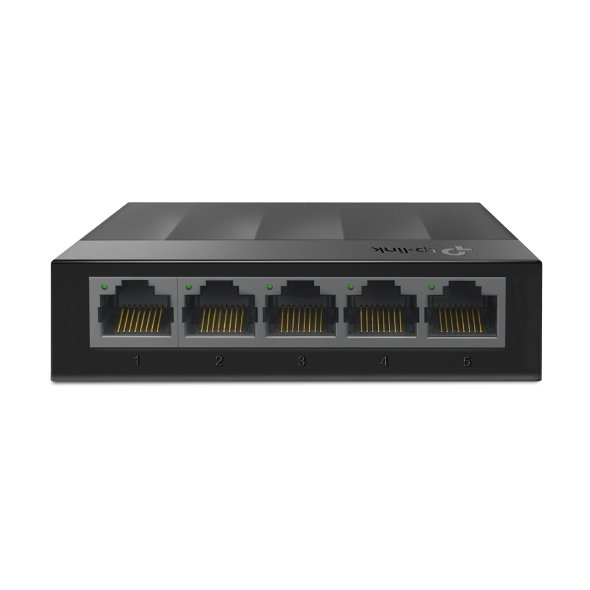

Increase the reliability of your connected devices with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
| Dimensions ( W x D x H ) | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) |
| Max Power Consumption | 3.7W |
| Max Heat Dissipation | 12.6 BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology 802.3X Flow Control Back Pressure |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

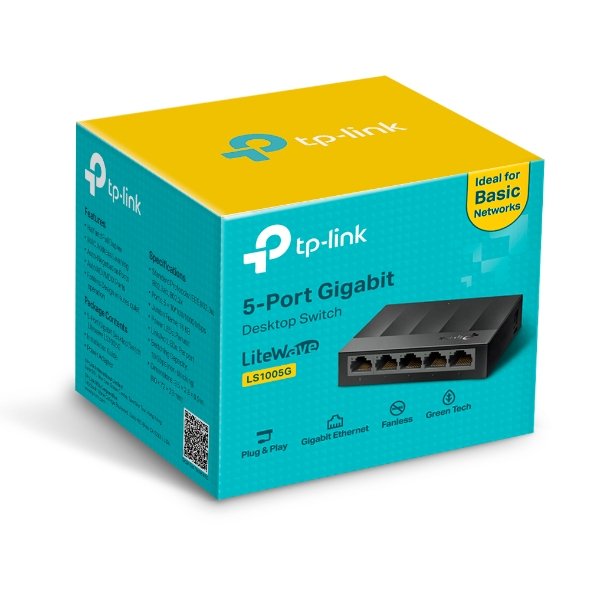

| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40?~60? (-40?~140?) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
