Description
What This Product Does

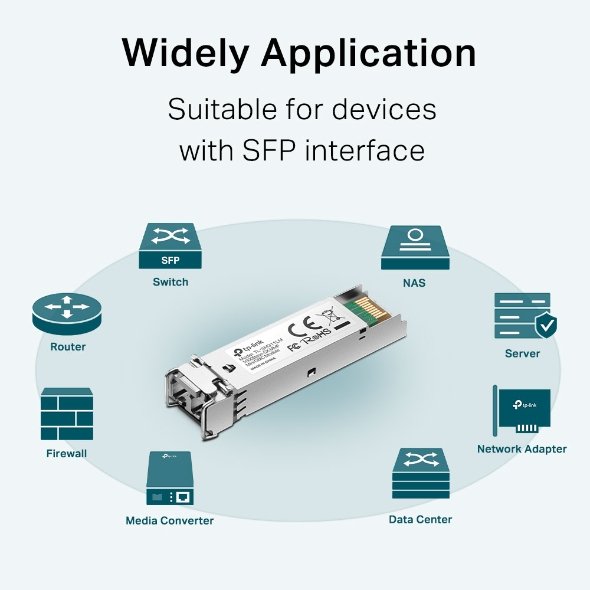

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | SFP Module TL-SM311LM Installation Guide |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Multi-mode Fiber |
| Fiber Type | 50/125?m or 62.5/125?m Multi-mode |

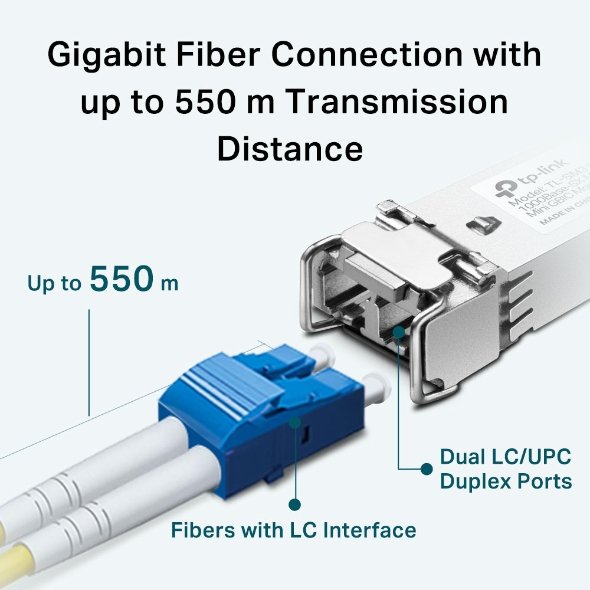

| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |

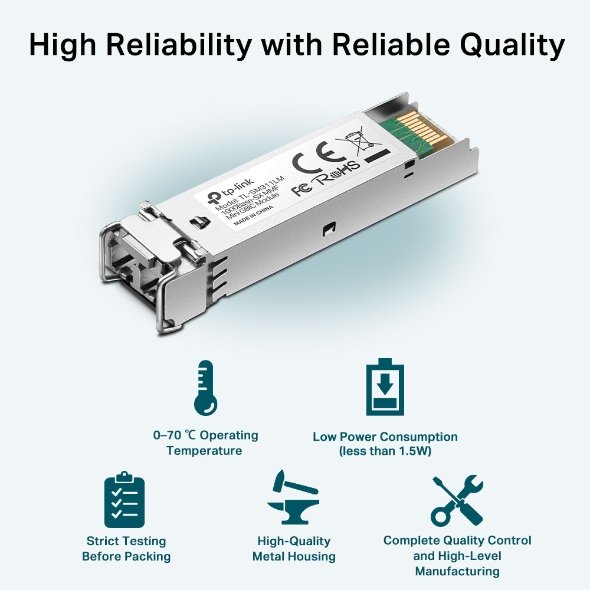

| Environment | Operating Temperature: 0?~70? (32?~158?) Storage Temperature: -40?~80? (-40?~176?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
