Description
What This Product Does

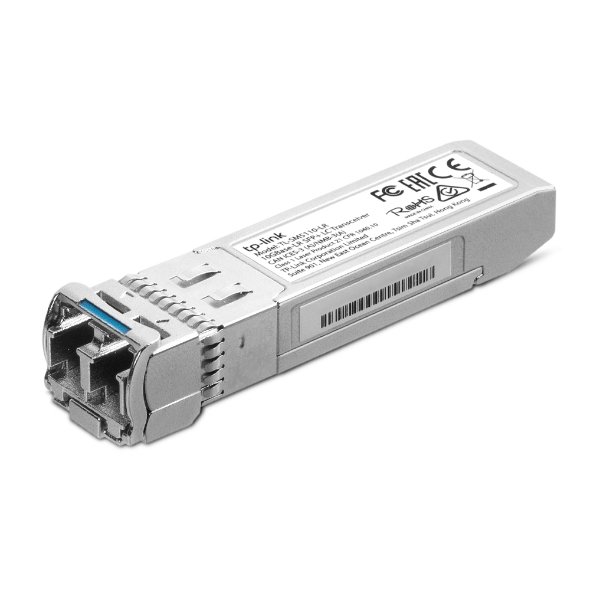

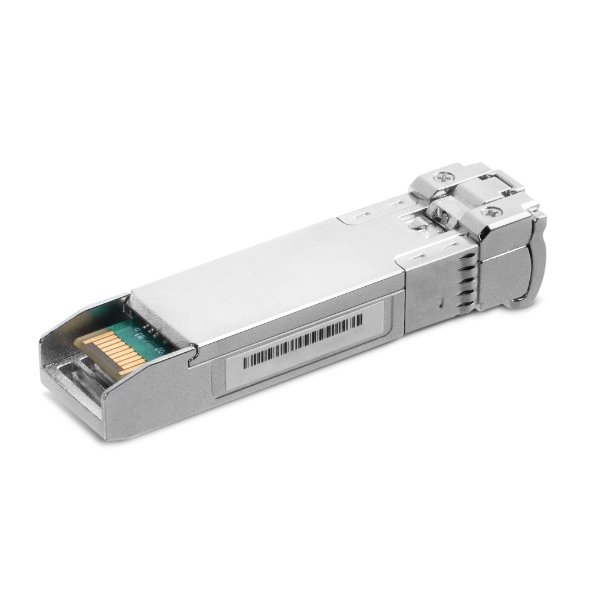

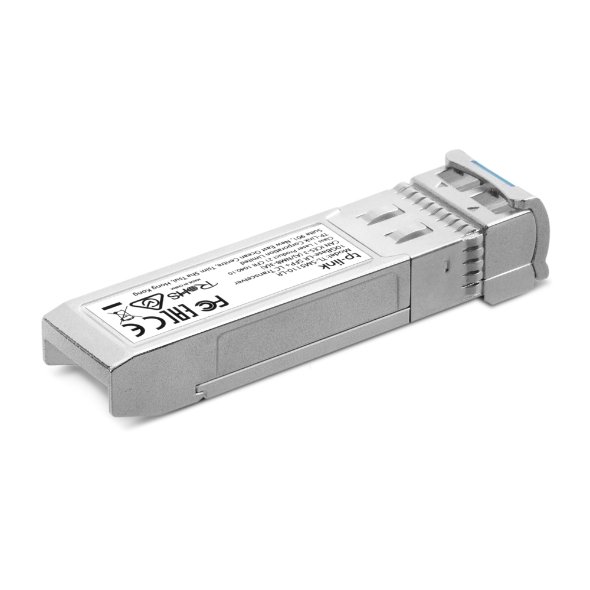

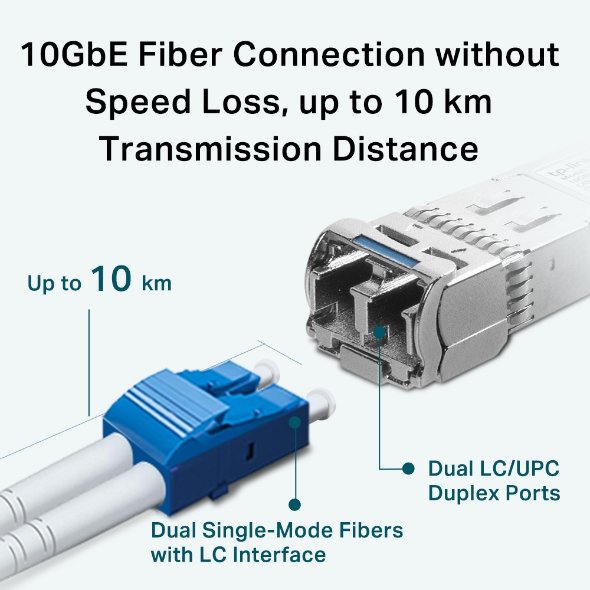

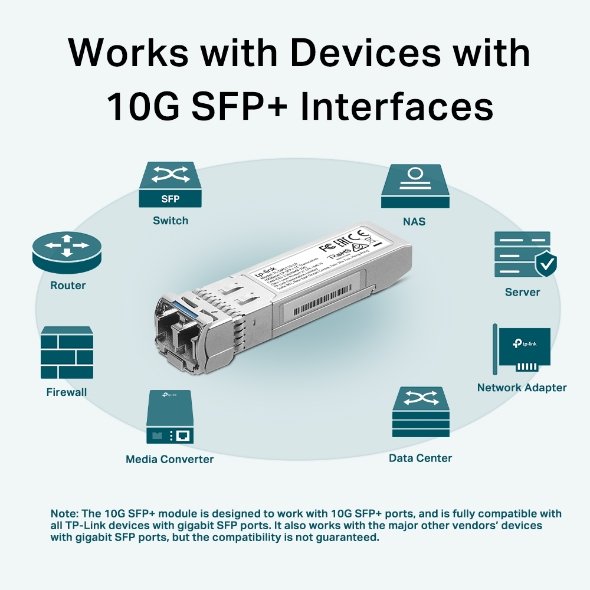

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | 10G SFP+ Module TL-SM5110-LR Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 070 °C (32158 °F) Storage Temperature: -4085 °C ( -40185 °F) Operating Humidity: 1090% RH, Non-Condensing Storage Humidity: 590% RH, Non-Condensing |
