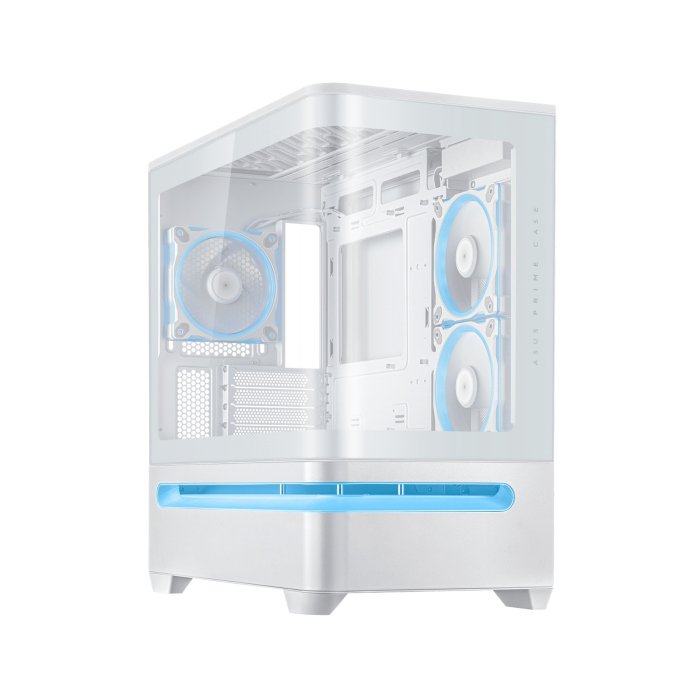

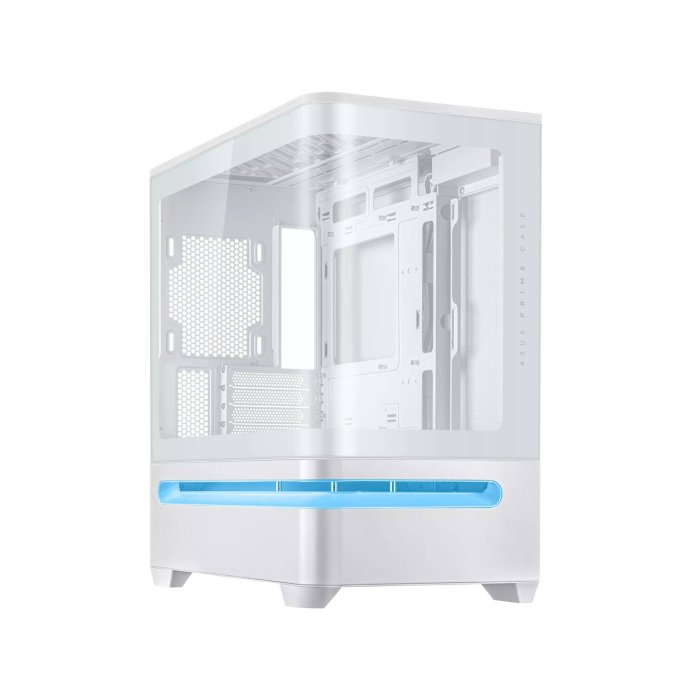

ASUS Prime AP202 ARGB Premium mATX Glass & RGB Mid-Tower Case
Design & Visual Highlights
The ASUS Prime AP202 ARGB is a stylish, high-performance chassis designed for builders who want excellent airflow, premium aesthetics, and versatile compatibility. It supports micro-ATX and mini-ITX motherboards while offering a panoramic view of your build, thanks to its curved tempered-glass panel that wraps from the front to the side.
The curved tempered-glass panel extends seamlessly from the front to the side, offering a sleek, uninterrupted view of your components. Its anti-drop, easy-detach rail mechanism ensures safe, tool-free removal of the side panel for effortless access during upgrades or cleaning.An integrated ARGB light band near the bottom adds a subtle, elegant glow that syncs perfectly with ASUS Aura Sync lighting setups. The case includes three pre-installed 120 mm ARGB fans with 20 individually addressable LEDs in each fan, ensuring vibrant illumination and optimized cooling performance.
Cooling, Compatibility & Functionality
Build Specs Summary
Designed for flexibility, the Prime AP202 ARGB Mid-Tower Case supports full-length graphics cards up to 420 mm, CPU coolers up to 175 mm in height, and power supplies up to 200 mm in length. The top of the case accommodates radiators up to 360 mm, ideal for advanced liquid-cooling setups.Its patented slot vent at the bottom front enhances airflow directly to the graphics card for better cooling efficiency. The top I/O panel includes a USB Type-C port (USB 3.2 Gen 2×2), additional USB-A ports, and a 3.5 mm combo audio jack for high-speed connectivity and convenience.With up to 30 mm of dedicated cable-management space behind the motherboard tray, the case makes it easy to build clean, organized systems with optimized airflow.
Form Factor: micro-ATX / mini-ITX
Drive Bays: 2 × combo 2.5? / 3.5?
Expansion Slots: 4 full-height
Cooling Support: Up to 7 fans (including 3 pre-installed ARGB fans)
Radiator Support: Top 360 mm / Rear 120 mm
Graphics Card Clearance: 420 mm
CPU Cooler Clearance: 175 mm
PSU Length: 200 mm
Dimensions: 441 × 236 × 460 mm
Weight: Approx. 9 kg
Dust Filters: Removable top and bottom filters for easy cleaning
| Model No | Prime AP202 ARGB |
| Part No | 90DC00P3-B19000 |
| Color | White |
| Case Material | Steel + Plastic + Tempered Glass (curved panel) |
| Case Size / Form Factor | Mid Tower (supports Micro-ATX & Mini-ITX motherboards) |
| Lighting | Integrated ARGB light band + three pre-installed 120 mm ARGB fans |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Pre-installed Fans | 3 × 120 mm ARGB |
| Additional Fan Support | Up to 9 × 120 mm fans (top + side + bottom support) |
| Radiator Support | Up to 360 mm radiator (top mount) |
| SSD/HDD Support | 2 × 2.5?/3.5? combo bays |
| I/O Ports | 1 × USB-C (20 Gbps), 2 × USB-A (USB 3.2 Gen1), 1 × 3.5 mm combo jack |
| CPU Cooler Limitation | Up to 175 mm tall |
| VGA Limitation | Up to 420 mm in length |
| PSU Limitation | Up to 200 mm length |
| Dust Filters | Removable filters at top & bottom |
| Product Size (W × H × D) | 236 mm × 460 mm × 441 mm |
| Product Weight | Approx. 9 kg |
| Package Content | Case unit, three ARGB fans, curved tempered-glass panel, mounting screws, cable ties |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
