Description
FINE MESH, EQUISITE TOUCH
COMPLETE SEEMLESS VIEW
BIG SIZE, GREAT COMPATIBILITY
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.

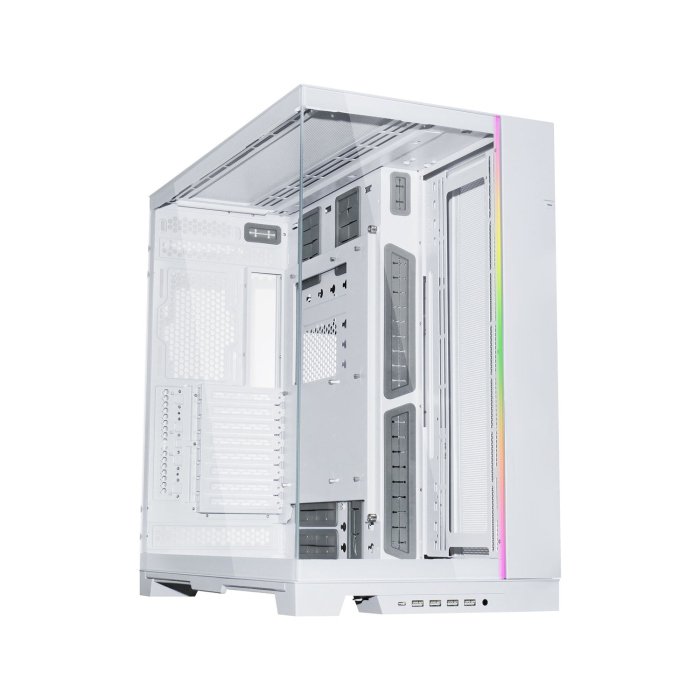

The O11D EVO XLs front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the cases structure.
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. Theres also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION
WITH WATER COOLING IN MIND
CUSTOMIZABLE CABLE MANAGEMENT
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
LIAN LIs O11D EVO XL, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.Note: Not applicable with Reverse Mode
| Model No | LIAN LI O11 Dynamic EVO XL Front And Side Tempered Glass Panel ATX Full Tower Case |
| Part No | O11DEXL-W |
| Color | White |
| Case Size | ATX Full Tower |
| Material | Steel4.0mm Tempered GlassAluminum |
| Motherboard Support | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
| Pre-Installed Fans | Not Included |
| Additional Fan Support | Top: 3 x 120mm / 3 x 140mmSide: 3 x 120mm / 3 x 140mmBottom: 3 x 120mm / 3 x 140mmRear: Up to 2x 120mm |
| Radiator Support | Top: 360 / 420 / 240 / 280mmSide: 360 / 420 / 240 / 280mmBottom: 360 / 420 / 240 / 280mm |
| SSD/HDD Support | Behind MB Tray: 3 x 2.5 SSDHard Drive Cage: 4 x 3.5 HDD / 2.5 SSD |
| I/O Ports | 1 x Power Button1 x Reset Button4 x USB 3.01 x USB Type C1 x Audio1 x LED Color Button1 x LED Mode Button |
| EXPANSION SLOTS | 8 |
| CPU Cooler Limitation | 167mm (Max.) |
| VGA Limitation | 460mm (Max.) |
| PSU Limitation | ATX (Under 220mm) |
| Special Features | ATX, Micro-ATX, Mini-ITX, E-ATX SupportSteel, Aluminum, Tempered Glass3 x 2.5″ Drive Trays4 x 2.5/3.5″ Drive Bays8 x Expansion SlotsFan & Radiator Support4 x USB 3.2 Gen 1 PortsUSB-C 3.2 Gen 1 PortSupports GPUs up to 18.1″ LongDedicated Cable Management Space |
| Product Size ( Dimension ) | (D) 522mm x (W) 304mm x (H) 531.9mm |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
