Description
Compact Design, Maximum Potential

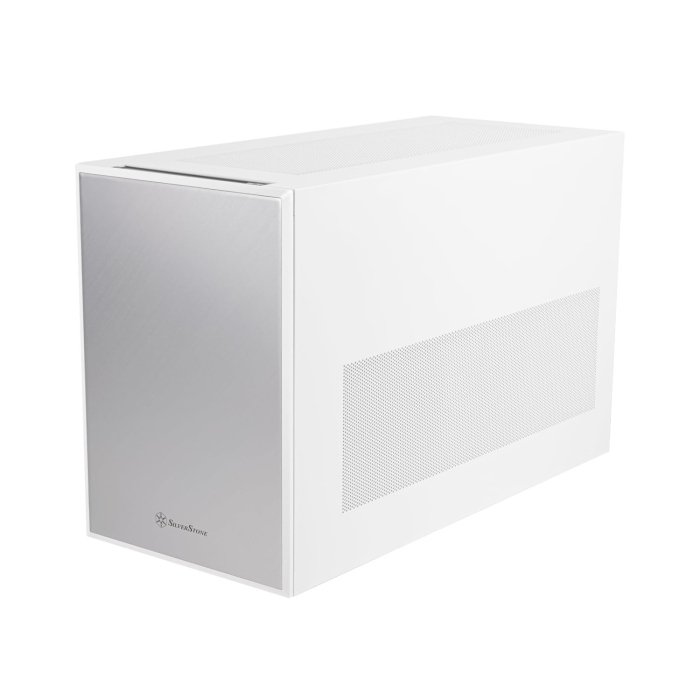

The SilverStone SUGO 17 is a premium cube-shaped chassis engineered for builders seeking a powerful Micro-ATX system in a remarkably compact footprint. Its sleek white exterior and minimalist aesthetic belie a highly efficient internal layout designed to maximize space utilization without sacrificing performance. This case challenges the conventional tower design, offering a distinctive cube form factor that stands out while providing surprising compatibility for high-end components, making it an ideal choice for a compact gaming rig, creative workstation, or elegant living room PC.
Intelligent Layout for Superior Compatibility
Building Ease Meets Premium Detail
Within its compact dimensions, the SUGO 17 features a cleverly engineered interior that supports standard Micro-ATX motherboards and ATX power supplies, significantly broadening component selection compared to many small form factor cases. The chassis provides dedicated space for long dual-slot graphics cards and multiple storage drives, ensuring your core performance components fit with room to breathe. Strategic ventilation cutouts and support for multiple fan sizes facilitate effective airflow paths, maintaining system stability even during intensive computing tasks.
SilverStone has infused the SUGO 17 with thoughtful features that prioritize the building experience. Tool-free drive installation, removable fan filters, and clearly defined cable routing channels make assembly straightforward and organized. The case’s construction emphasizes quality materials and clean finishes, with a robust steel frame and modern plastic accents that complement its premium appearance. Every design choice, from the accessible I/O panel to the optimized component placement, reflects a commitment to creating a compact case that doesn’t compromise on functionality or builder convenience.
Specification:
Model: SUGO 17
Type: Micro-ATX Cube Case
Color: White
Motherboard: Micro-ATX, Mini-ITX
PSU Support: Standard ATX
Max GPU Length: 330mm
Drive Bays: 2 x 2.5″, 1 x 3.5″
Front I/O: 2 x USB 3.0, Audio
Cooling Support: 2 x 120mm Fan Mounts
Dimensions: Compact Cube Form Factor
| Model No | Silver Stone SUGO 17 |
| Part No | SST-SG17W |
| Color | White |
| Case Material | Steel, Aluminum, Plastic |
| Case Size | Shoebox-Mini Tower / Desktop-style Mini Tower (? 26.1 L) |
| Lighting | None built-in RGB lighting noted (standard finish) |
| Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX |

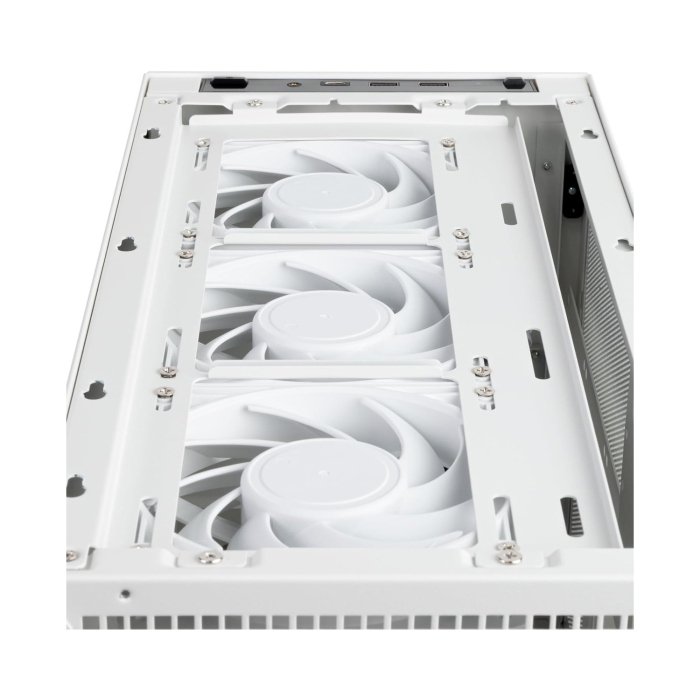

| Pre-installed Fans | Three 120mm fans included at top; also there are fan brackets and mounts elsewhere (some fans included top) |
| Additional Fan Support | Up to 11 fans total: 7 × 120 mm + 4 × 80 mm in various positions (top, side, etc.) |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side (Right): 120 / 240 / 360 mm |
| SSD/HDD Support | 1 × 3.5? HDD or up to 3 × 2.5? SSDs; also additional 2.5? mounting points (about 2 × 2.5? SSD + others) |
| I/O Ports | 1 × USB Type-C, 2 × USB 3.0 (Type-A), 1 × combo audio jack |
| CPU Cooler Limitation | Max CPU cooler height ~158 mm |
| VGA Limitation | Max graphics card (GPU) length ~400 mm; width constraint ~174 mm |
| PSU Limitation | Supports ATX / SFX / SFX-L power supplies; max PSU length depends on motherboard size: ~140 mm in Micro-ATX configuration; up to ~215 mm in Mini-ITX / Mini-DTX configuration |
| Dust Filters | Intake/vent areas feature vents; specific filters not clearly detailed in sources (no explicit mention of full dust filters) |
| Product Size (Dimension) | Width: ~202 mm × Height: ~286 mm × Depth: ~451 mm; about 26.1 liters of internal volume |
| Product Weight | ~5.78 kg net weight |
| Package Content | Case body / panels, pre-installed fans (top), mounting brackets/hardware, I/O cables, manuals |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
